STG3856QTR - ST Microelectronics

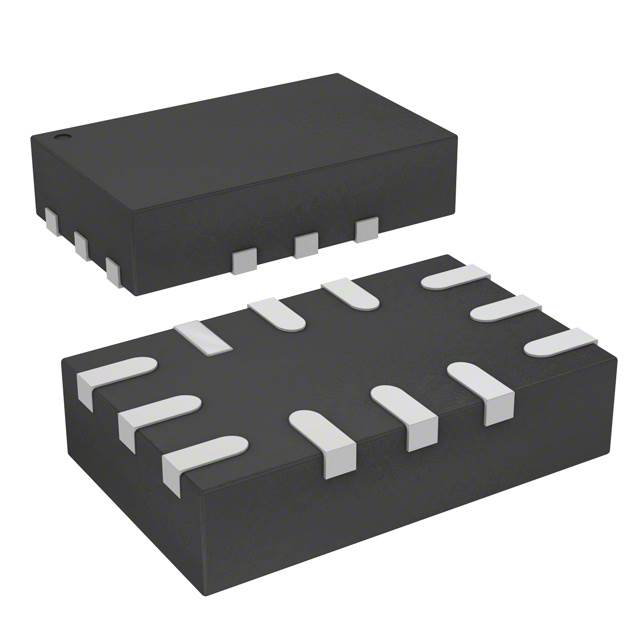

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STG3856QTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW27752793
Category

Interface IC, Interface Controller
Package

QFN-12
Description

STG3856 Series SP3T 4.3V 1.5Ω SMT Low Voltage Analog Switch - QFN-12L
Documentation

Datasheet

STG3856QTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STG3856QTR Specifications

Attribute	Attribute Value

Part Number	STG3856QTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW27752793
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	QFN-12
Supply Voltage (DC)	4.30 V
Number of Outputs	6 Output
Supply Current	0.05 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	12 Position
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 MHz
Supply Voltage	1.4V ~ 4.3V
	expand all
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The STG3856 is a high-speed CMOS low voltage dual analog SP3T (single pole triple throw) switch or dual 3 : 1 multiplexer /demultiplexer switch fabricated in silicon gate C2MOS technology. It is designed to operate from 1.65 V to 4.3 V, making this device ideal for portable applications.
The device offers very low ON resistance (< 1.0 Ω) at VCC = 4.3 V. The disabling and enabling of switches are done by setting the 1IN and 2IN control pins. Additional key features are fast switching speed, and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
**Key Features**
ESD performance (analog channel vs. GND): HBM > 2 kV (MIL STD 883 method 3015)
Latch-up performance exceeds 300 mA (JESD 17)
High speed:tPD = 0.3 ns (typ.) at VCC = 3.0 VtPD = 0.4 ns (typ.) at VCC = 2.3 V
Low ON resistance VIN = 0 V:RON = 1.0 Ω(max. TA = 25°C) at VCC = 4.3 VRON = 1.5 Ω (max. TA = 25°C) at VCC = 3.0 VRON = 1.8 Ω (max. TA = 25°C) at VCC = 2.3 V
Ultra low power dissipation:Icc = 0.2 μA (max.) at TA = 85°C
4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 2.3 to 4.3 V
Wide operating voltage range:VCC (opr) = 1.65 V to 4.3 V single supply
