STI45N10F7 - ST Microelectronics

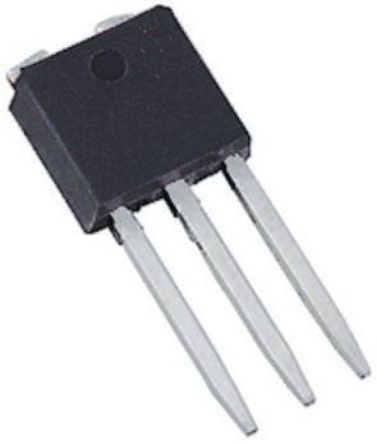

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STI45N10F7
Manufacturer

ST Microelectronics
ChipWorker Part#

CW97903320
Category

MOSFET, MOSFET Transistor
Package

TO-262-3
Description

Trans MOSFET N-CH 100V 45A 3Pin I2PAK Tube
Documentation

Datasheet

STI45N10F7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STI45N10F7 Specifications

Attribute	Attribute Value

Part Number	STI45N10F7
Manufacturer	ST Microelectronics
ChipWorker Part#	CW97903320
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-262-3
Power Dissipation	60 W
Drain to Source Voltage (Vds)	100 V
Rise Time	17 ns
Input Capacitance (Ciss)	1640pF @50V(Vds)
Fall Time	8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	60W (Tc)
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.35 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status

Product Description

N-Channel 100V 45A (Tc) 60W (Tc) Through Hole I2PAK (TO-262)
