STL60P4LLF6 - ST Microelectronics

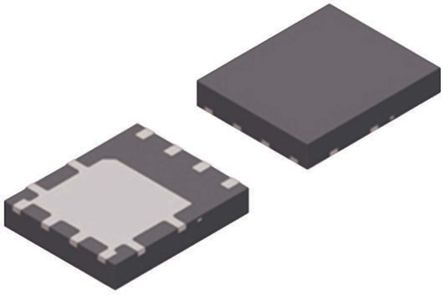

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STL60P4LLF6
Manufacturer

ST Microelectronics
ChipWorker Part#

CW70725320
Category

MOSFET, MOSFET Transistor
Package

PowerFLAT-5x6-8
Description

Power P-CH 40V 60A
Documentation

Datasheet

STL60P4LLF6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STL60P4LLF6 Specifications

Attribute	Attribute Value

Part Number	STL60P4LLF6
Manufacturer	ST Microelectronics
ChipWorker Part#	CW70725320
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerFLAT-5x6-8
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0115 Ω
Polarity	P-CH
Power Dissipation	100 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	60A
Rise Time	60.6 ns
Input Capacitance (Ciss)	3525pF @25V(Vds)
Fall Time	20 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	100W (Tc)
	expand all
Size-Length	6.35 mm
Size-Width	5.4 mm
Size-Height	0.95 mm
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

P-Channel 40V 60A (Tc) 100W (Tc) Surface Mount PowerFlat™ (5x6)
