STLM20W87F - ST Microelectronics

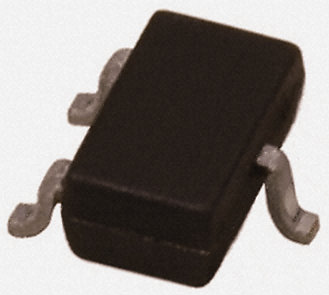

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STLM20W87F
Manufacturer

ST Microelectronics
ChipWorker Part#

CW6578934
Category

Temperature Sensor
Package

SOT-323-5
Description

Temperature Sensor IC, Voltage, ± 1.5℃, -55℃, +130℃, SC-70, 5Pins
Documentation

Datasheet

STLM20W87F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STLM20W87F Specifications

Attribute	Attribute Value

Part Number	STLM20W87F
Manufacturer	ST Microelectronics
ChipWorker Part#	CW6578934
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-323-5
Supply Voltage (DC)	2.40V (min)
Output Voltage	1.86 V
Output Current	10.0 mA
Supply Current	0.008 mA
Number of Positions	5 Position
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±1.5 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.4 V
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 130℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The STLM20W87F is a Temperature Sensor for low current applications where maximizing battery life is important. The maximum temperature accuracy of the STLM20 is ±1.5°C (±0.5°C typical) at an ambient temperature of 25°C and VCC of 2.7V. The temperature error increases linearly and reaches a maximum of ±2.5°C at the temperature range extremes. The temperature range is affected by the power supply voltage. The STLM20 has a maximum quiescent supply current of 8µA, self-heating is negligible.
Precision analogue voltage output temperature sensor
4.8µA (typical) Ultra-low quiescent supply current
