STM8L152C4T6 - ST Microelectronics

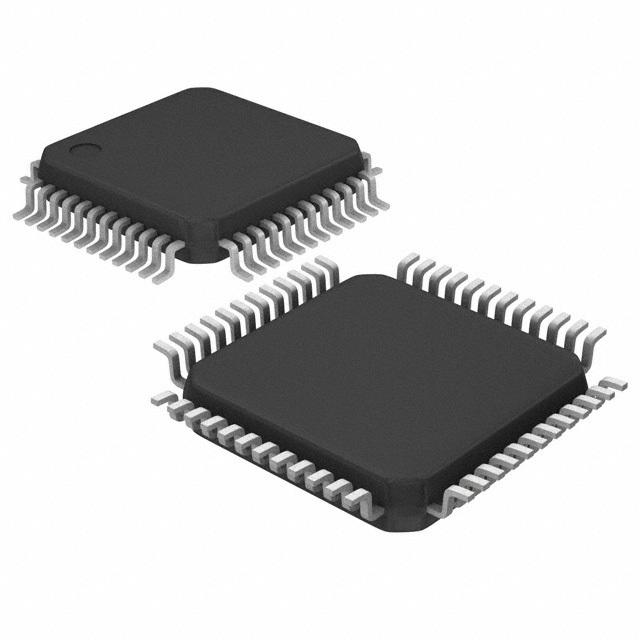

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM8L152C4T6
Manufacturer

ST Microelectronics
ChipWorker Part#

CW13543542
Category

Microcontroller, MCU IC
Package

LQFP-48
Description

STM8L Series 16KB Flash 2KB RAM 16MHz SMT 8Bit Microcontroller - LQFP-48
Documentation

Datasheet

STM8L152C4T6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STM8L152C4T6 Specifications

Attribute	Attribute Value

Part Number	STM8L152C4T6
Manufacturer	ST Microelectronics
ChipWorker Part#	CW13543542
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	1.80V (min)
Clock Speed	16.0 MHz
RAM Memory Size	2K x 8
Number of Bits	8 Bit
Power Dissipation	288 mW
FLASH Memory Size	16 KB
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	288 mW
Number of DACs	1 DAC
Supply Voltage	1.8V ~ 3.6V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

STM8 STM8L EnergyLite Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH 48-LQFP (7x7)
