T322D226K020AT - KEMET Corporation

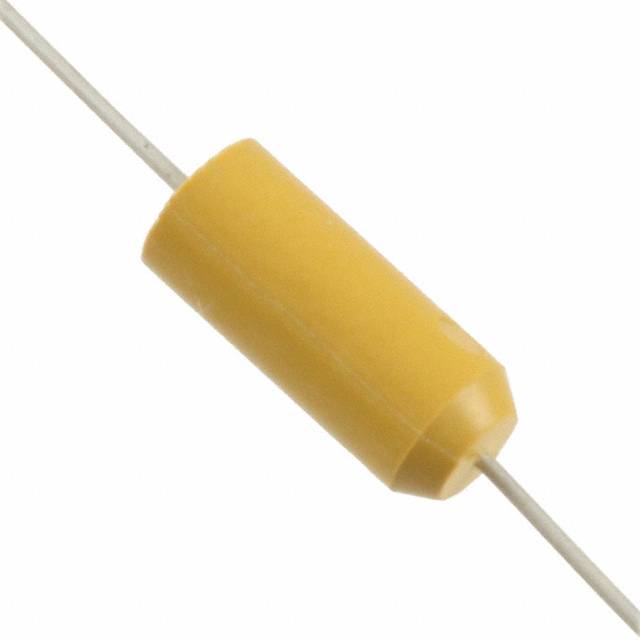

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

T322D226K020AT
Manufacturer

KEMET Corporation
ChipWorker Part#

CW61686786
Category

Tantalum Capacitor
Package

Axial
Description

22uF ±10% 20V Φ4.57mm 10.67mm
Documentation

Datasheet

T322D226K020AT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

T322D226K020AT Specifications

Attribute	Attribute Value

Part Number	T322D226K020AT
Manufacturer	KEMET Corporation
ChipWorker Part#	CW61686786
Category	Tantalum Capacitor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Voltage Rating (DC)	20.0 V
Capacitance	22 µF
Equivalent Series Resistance (ESR)	1.8 Ω
Capacitance Tolerance	±10 %
Part Family	T322
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	20 V
	expand all
Size-Length	10.67 mm
Size-Width	510 µm
Size-Height	10.67 mm
Size-Diameter	4.60 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

* ** Capacitance Range:** 0.1 - 330pF
* ** Voltage Range:** 2 - 50V
* ** Tolerance:** ±20%, ±10%, ±5%
* ** Case Size:** A, B, C, D, E & F
The Kemet T322 and T323 (CX01 & CX05) Axial leaded Series offers a complete line of extended range molded solid tantalum capacitors designed specifically for high speed automatic insertion applications. These capacitors offer an extremely high capacitance-to-volume ratio while still maintaining excellent performance characteristics. Supplied in six axial lead tubular case sizes, these capacitors are ideally suited for use in printed wiring boards and all applications requiring a high degree of packaging density.
