TDA7388 - ST Microelectronics

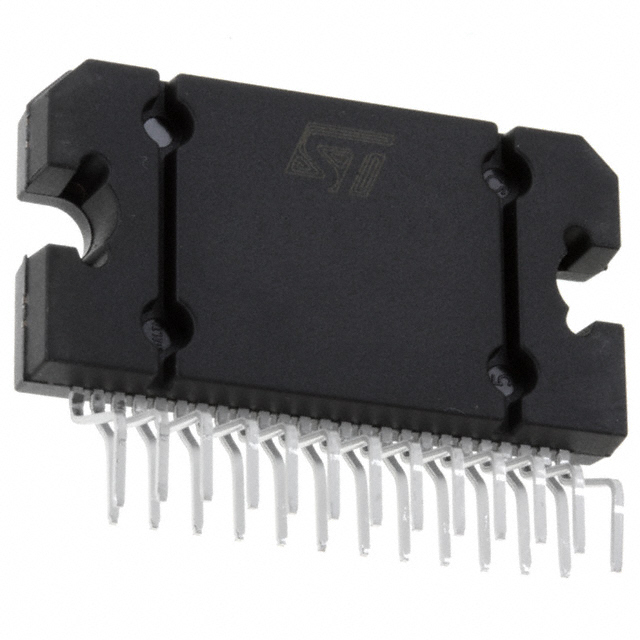

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TDA7388
Manufacturer

ST Microelectronics
ChipWorker Part#

CW104614
Category

Audio Amplifier IC
Package

25-Flexiwatt
Description

Audio Amp Speaker 4CH Stereo 26W Class-AB Automotive 25Pin FLEXIWATT(Vertical) Tube
Documentation

Datasheet

TDA7388 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TDA7388 Specifications

Attribute	Attribute Value

Part Number	TDA7388
Manufacturer	ST Microelectronics
ChipWorker Part#	CW104614
Category	Audio Amplifier IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	25 Pin
Case/Package	25-Flexiwatt
Power Rating	45 W
Number of Circuits	1 Circuit
Number of Channels	4 Channel
Number of Positions	25 Position
Power Dissipation	80 W
Output Power	45 W
Gain	26 dB
Output Current (Max)	5500 mA
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	80000 mW
Supply Voltage	8V ~ 18V
	expand all
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Amplify a wide range of sounds with this TDA7388 class D amplifier from STMicroelectronics. Its maximum power dissipation is 80000 mW. This audio amplifier can handle a current up to 5500 mA. It has a maximum load resistance of 4 Ohm. It has a single input signal and a differential output signal. It has a 4-channel stereo output. This audio amplifier has a maximum operating temperature of 150 °C. This device uses a single power supply.
