TIP42A - ST Microelectronics

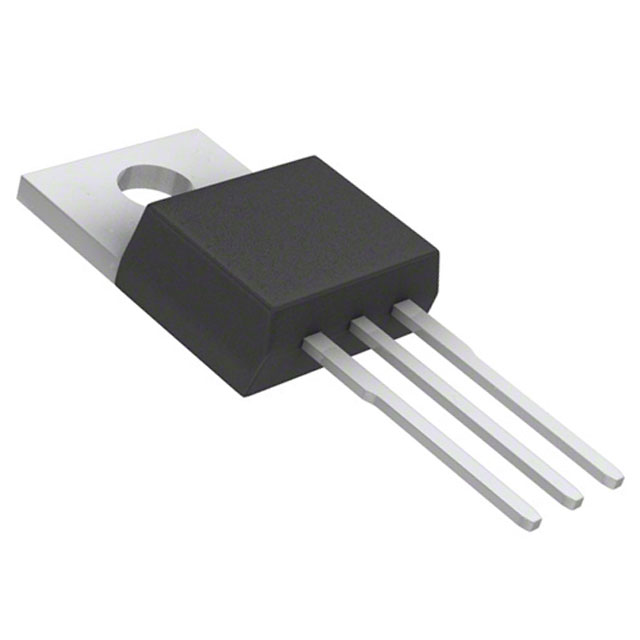

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TIP42A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW14019168
Category

BJT Transistor, BJT
Package

TO-220-3
Description

Trans GP BJT PNP 60V 6A 2000mW 3Pin(3+Tab) TO-220 Tube
Documentation

Datasheet

TIP42A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TIP42A Specifications

Attribute	Attribute Value

Part Number	TIP42A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW14019168
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-60.0 V
Current Rating	-6.00 A
Number of Positions	3 Position
Polarity	PNP, P-Channel
Power Dissipation	2 W
Breakdown Voltage (Collector to Emitter)	60 V
hFE Min	15 @3A, 4V
hFE Max	75
Input Power (Max)	2 W
DC Current Gain (hFE)	75
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	2000 mW
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	15.75 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The TIP42A is a PNP-NPN complementary Power Transistor manufactured using Silicon Base Island technology. The device is housed in a JEDEC plastic package with improved performances than the industry standard. This device is suitable for audio, power linear and switching applications.
New enhanced series
High switching speed
hFE improved linearity
