TLC271ACD - TI

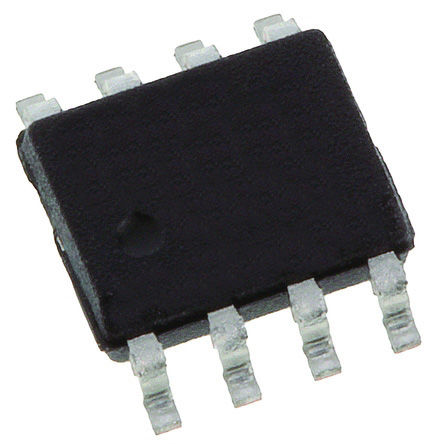

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLC271ACD
Manufacturer

TI
ChipWorker Part#

CW19525437
Category

Operational Amplifier, OP Amp IC
Package

SOIC-8
Description

TEXAS INSTRUMENTS TLC271ACD Operational Amplifier, Single, 1 Amplifier, 1.7MHz, 3.6V/µs, 3V to 16V, SOIC, 8Pins
Documentation

Datasheet

TLC271ACD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLC271ACD Specifications

Attribute	Attribute Value

Part Number	TLC271ACD
Manufacturer	TI
ChipWorker Part#	CW19525437
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	≤30 mA
Supply Current	950 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.725 W
Common Mode Rejection Ratio	65 dB
Input Offset Drift	1.80 µV/K
Bandwidth	1.7 MHz
Slew Rate	3.60 V/μs
Gain Bandwidth Product	1.7 MHz
Input Offset Voltage	900 µV
Input Bias Current	0.7 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	2.2 MHz
Power Dissipation (Max)	725 mW
Minimum CMRR Range	65 dB
Supply Voltage	3V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

description
The TLC271 operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271 offers a bias-select mode that allows the user to select the best combination of power dissipation and ac performance for a particular application. These devices use Texas Instruments silicon-gate LinCMOS technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.
Input Offset Voltage Drift...Typically 0.1 µV/Month, Including the First 30 Days
Wide Range of Supply Voltages Over Specified Temperature Range:
0°C to 70°C...3 V to 16 V
–40°C to 85°C...4 V to 16 V
–55°C to 125°C...5 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Types)
Low Noise. . . 25 nV/√HzTypically at f = 1 kHz (High-Bias Mode)
Output Voltage Range Includes Negative Rail
High Input Impedance...1012ΩTyp
ESD-Protection Circuitry
Small-Outline Package Option Also Available in Tape and Reel
Designed-In Latch-Up Immunity
