BA829 - ROHM Semiconductor

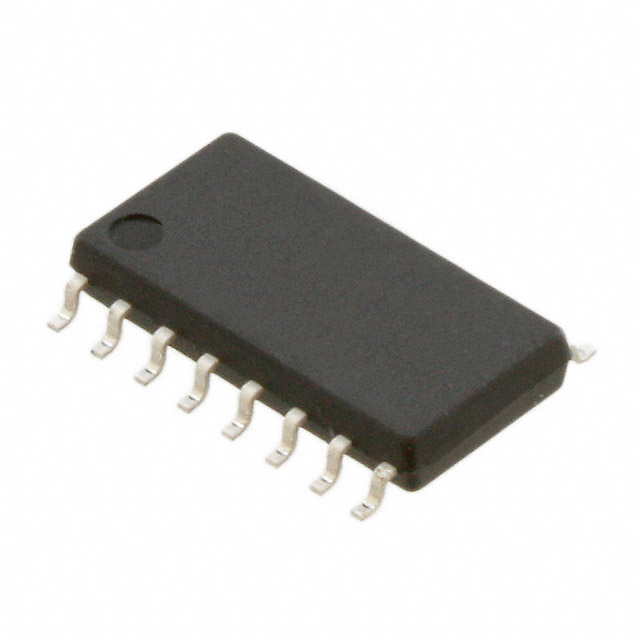

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BA829
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW114928563
Category

Interface IC, Interface Controller
Package

DIP-18
Description

LED DRVR 5.5V 18Pin PDIP Tube
Documentation

Datasheet

BA829 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

BA829 Specifications

Attribute	Attribute Value

Part Number	BA829
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW114928563
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Output Current	300 mA
Power Dissipation	1100 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	4.5V ~ 5.5V
Input Voltage	2.6 V
	expand all
Size-Length	22.9 mm
Size-Width	6.5 mm
Size-Height	3.14 mm
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

● Description
Serial-in-parallel-out driver is a constant-current output driver with a built-in shift register and a latch circuit to turn on a maximum of 8 LED by a 5-line interface linked to a microcontroller. Output current value of constant-current can be set up to a maximum of 300mA.
● Features
1) This product can drive a maximum of 300mA.
2) When the strobe terminal is controlled by the drive timing pulse, current during a period without driving can be reduced.
3) When the data output terminal is used as the next input data, cascade connection becomes possible.
4) Digital ground and power ground are separated.
5) Latch is built in between the shift register and the driver output.
6) Stand-by function is incorporated. (10μA Typ. upon standby)
● Applications
For AV equipment such as, component stereo sets, videos and TV sets, PCs, and control microcontroller mounted equipment.
