TLE2082CP ,Operational Amplifier, OP Amp IC - TI

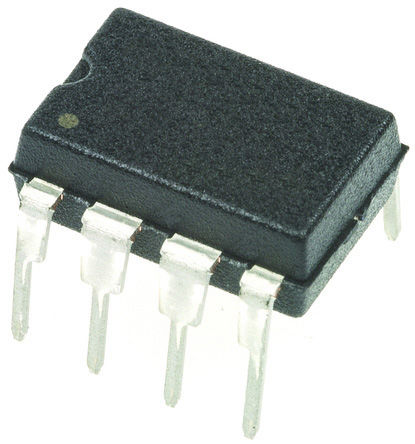

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

76 points

Part No

TLE2082CP
Manufacturer

TI
ChipWorker Part#

CW34331846
Category

Operational Amplifier, OP Amp IC
Package

PDIP-8
Description

TEXAS INSTRUMENTS TLE2082CP Operational Amplifier, Dual, 2 Amplifier, 9.4MHz, 35V/µs, ± 2.25V to ± 19V, DIP, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 4.22

Buy TLE2082CP

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TLE2082CP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TLE2082CP Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TLE2082CP
Manufacturer	TI
ChipWorker Part#	CW34331846
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	≤80 mA
Supply Current	3.1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Power Dissipation	1000 mW
Common Mode Rejection Ratio	70 dB
Input Offset Drift	2.40 µV/K
Bandwidth	9.4 MHz
Slew Rate	40.0 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	1.1 mV
Input Bias Current	20 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	10 MHz
Power Dissipation (Max)	1000 mW
Minimum CMRR Range	70 dB
	expand all
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

description
The TLE208x series of JFET-input operational amplifiers more than double the bandwidth and triple the slew rate of the TL07x and TL08x families of BiFET operational amplifiers. The TLE208x also have wider supply-voltage rails, increasing the dynamic-signal range for BiFET circuits to ±19 V. On-chip zener trimming of offset voltage yields precision grades for greater accuracy in dc-coupled applications. The TLE208x are pin-compatible with lower performance BiFET operational amplifiers for ease in improving performance in existing designs.
BiFET operational amplifiers offer the inherently higher input impedance of the JFET-input transistors, without sacrificing the output drive associated with bipolar amplifiers. This makes these amplifiers better suited for interfacing with high-impedance sensors or very low level ac signals. They also feature inherently better ac response than bipolar or CMOS devices having comparable power consumption.
Direct Upgrades to TL05x, TL07x, and TL08x BiFET Operational Amplifiers
Greater Than 2× Bandwidth (10 MHz) and 3× Slew Rate (45 V/µs) Than TL08x
On-Chip Offset Voltage Trimming for Improved DC Performance
Wider Supply Rails Increase Dynamic Signal Range to ±19 V
