TLE42502GHTSA1 ,Voltage Regulator - Infineon

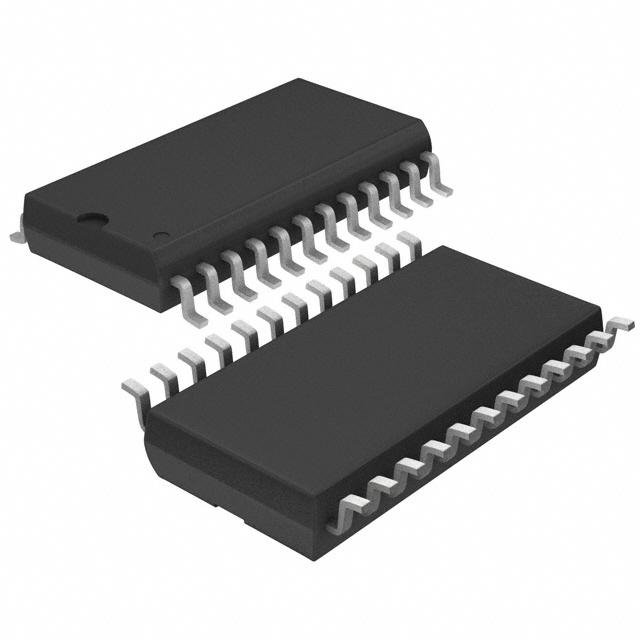

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
84 points
-
Part NoTLE42502GHTSA1
-
ManufacturerInfineon
-
ChipWorker Part#CW47295190
-
CategoryVoltage Regulator
-
PackageSCT-595-5
-
DescriptionLDO Voltage Regulator, Adjustable, 4V to 40V in, 100mV drop, 2.5V to 40V/50mA out, SMD-5
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие5220 pcs In Stock
-
Estimated Price$ 0.46
Payment Methods and Delivery
{{ estimate }}
Buy TLE42502GHTSA1
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
TLE42502GHTSA1 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
TLE42502GHTSA1 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | TLE42502GHTSA1 | |
| Manufacturer | Infineon | |
| ChipWorker Part# | CW47295190 | |
| Category | Voltage Regulator | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Number of Pins | 5 Pin | |
| Case/Package | SCT-595-5 | |
| Number of Outputs | 1 Output | |
| Output Current | 50 mA | |
| Number of Positions | 5 Position | |
| Quiescent Current | 200 µA | |
| voltage rating | 100 mV | |
| Input Voltage (Max) | 40 V | |
| Input Voltage (Min) | 4 V | |
| Output Voltage (Max) | 40 V | |
| Output Voltage (Min) | 2.5 V | |
| Output Current (Max) | 0.05 A | |
| Operating Temperature (Max) | 150 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Accuracy | ±5 % | |
| Input Voltage | 4V ~ 40V | |
| expand all | ||
| Size-Length | 2.9 mm | |
| Size-Width | 1.6 mm | |
| Size-Height | 1.1 mm | |
| Operating Temperature | -40℃ ~ 150℃ | |
| Product Lifecycle Status | Unknown | |
| Packaging | Tape & Reel (TR) | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free |
Similar & Replacement Parts
Similar products
Product Description
- The TLE4250-2G is a monolithic integrated low dropout Voltage Tracking Regulator with excellent thermal resistance. It is designed to supply off-board loads in automotive environment. The IC protects itself in case of overload, over-temperature, reverse polarity as well as output short-circuit to battery and ground. The output Q is able to drive loads up to 50mA and in order to reduce the quiescent current to a minimum, the regulator can be switched to stand-by mode by setting the adjust/enable input ADJ/EN to low.
- Low output tracking tolerance
- Stable with small ceramic output capacitor
- Combined reference/enable input
- Reverse polarity protection
- Output short-circuit proof to ground and supply
- Over-temperature protection
- Efficient and accurate voltage replication
- Heat distribution in the system
- Robust tracking supply
