TLK110CUSEVM - TI

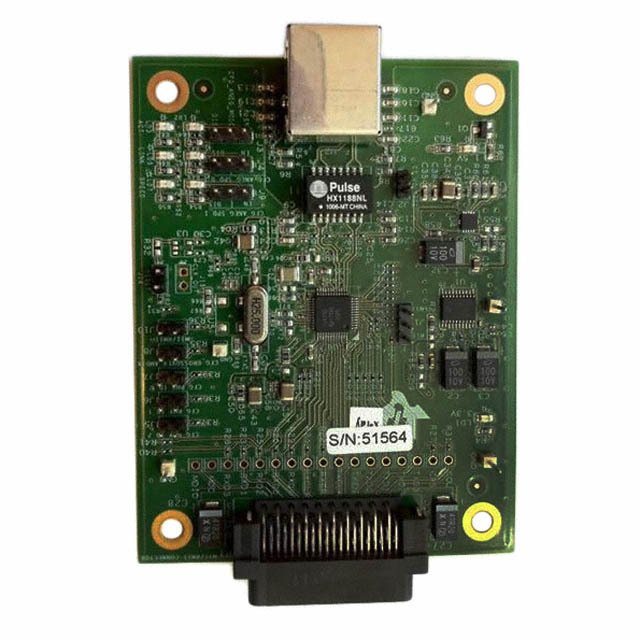

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLK110CUSEVM
Manufacturer

TI
ChipWorker Part#

CW79040115
Category

Microprocessor Development Kit
Description

TEXAS INSTRUMENTS TLK110CUSEVM Evaluation Module, 2 Power & 6 Status LEDs, Resistor Strapping Options
Documentation

Datasheet

TLK110CUSEVM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLK110CUSEVM Specifications

Attribute	Attribute Value

Part Number	TLK110CUSEVM
Manufacturer	TI
ChipWorker Part#	CW79040115
Category	Microprocessor Development Kit
Documentation	Datasheet
Operating Temperature (Max)	85 ℃
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TLK110CUSEVM is an evaluation module provides a platform that allows the users to easily evaluate the TLK110 device. The TLK110 is a single port Ethernet PHY for 10Base-T and 100Base TX signalling. This device integrates all the physical layer functions needed to transmit and receive data on standard twisted pair cables. The TLK110 supports the standard media independent interface and reduced media independent interface for direct connection to a media access controller (MAC). The TLK110 is designed for power supply flexibility, and can operate with a single 3.3V power supply or with combinations of 3.3V and 1.55V power supplies for reduced power operation. The TLK110 uses mixed signal processing to perform equalization, data recovery, and error correction to achieve robust operation over CAT 5 twisted pair wiring. This device not only meets the requirements of IEEE 802.3, but maintains high margins in terms of cross talk and alien noise.
The TLK110CUSEVM is designed to work in industrial temperatures
The TLK110CUSEVM supports 10/100 Base-T and is IEEE 802.3 standard compliant
Configurable PHY addresses 08h - 31h
Single sided component placement
CFG_ANEG_MODE
CFG_ANAEG_SPD_0,1
CFG_CROSSOVER
Configurable 8 PHY Addresses 01h (default) or any other address between 00h - 07h using jumpers
This EVM should be operated within the input range of 5V to 3.3V . Exceeding the specified input range may cause unexpected operation or irreversible damage to the EVM.
