TLP260J - Toshiba

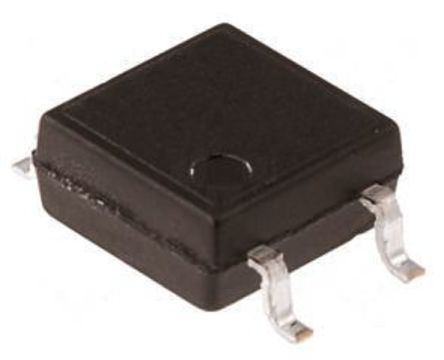

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLP260J
Manufacturer

Toshiba
ChipWorker Part#

CW96204846
Category

Optocoupler, Optoisolator
Package

SOP-6
Description

Optocoupler Triac AC-OUT 1CH 600V 4Pin MFSOP
Documentation

Datasheet

TLP260J Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLP260J Specifications

Attribute	Attribute Value

Part Number	TLP260J
Manufacturer	Toshiba
ChipWorker Part#	CW96204846
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOP-6
Input Voltage (DC)	1.00 V
Output Voltage	600 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.15 V
Input Current	20 mA
Isolation Voltage	3 kV
Holding Current	1 mA
Output Voltage (Max)	2.8 V
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

The TLP260J is a TRIAC Output Photocoupler, suitable for surface-mount assembly. It consists of a photo-TRIAC optically coupled to a gallium arsenide infrared-emitting diode.
