TLV2333IDGKR - TI

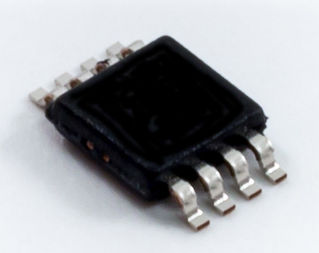

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV2333IDGKR
Manufacturer

TI
ChipWorker Part#

CW35484129
Category

Operational Amplifier, OP Amp IC
Package

VSSOP-8
Description

Zero-Drift CMOS Operational Amplifier for Cost-Sensitive Systems 8-VSSOP -40℃ to 125℃
Documentation

Datasheet

TLV2333IDGKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV2333IDGKR Specifications

Attribute	Attribute Value

Part Number	TLV2333IDGKR
Manufacturer	TI
ChipWorker Part#	CW35484129
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	17 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	102 dB
Input Offset Drift	20.0 nV/K
Slew Rate	160 mV/μs
Gain Bandwidth Product	350 kHz
Input Offset Voltage	2 µV
Input Bias Current	70 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	102 dB
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TLVx333 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the _zero-drift_ family of amplifiers that uses a proprietary auto-calibration technique to simultaneously provide low offset voltage (15 µV, max) and near-zero drift over time and temperature at only 28 µA (max) of quiescent current. The TLVx333 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V).
The TLV333 (single version) is available in the SC70-5, SOT23-5, and SOIC-8 packages. The TLV2333 (dual version) is offered in VSSOP-8 and SOIC-8 packages. The TLV4333 is offered in the standard SOIC-14 and TSSOP-14 packages. All versions are specified for operation from –40°C to +125°C.
