TLV2462CP - TI

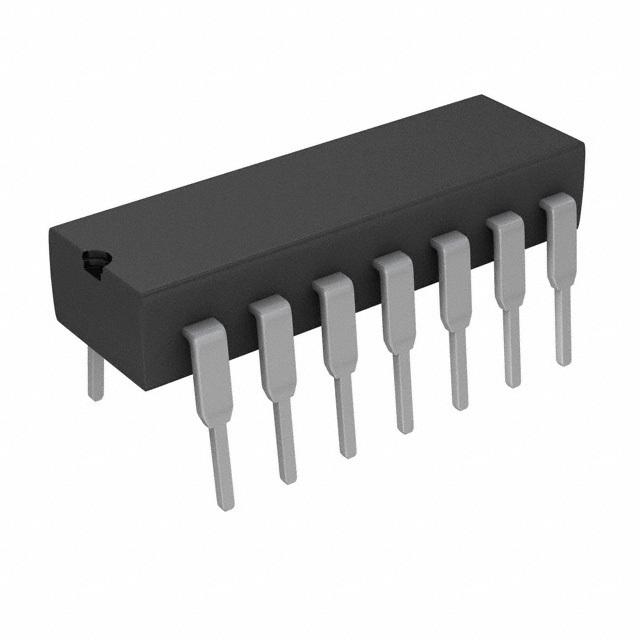

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLV2462CP
Manufacturer

TI
ChipWorker Part#

CW31403666
Category

Operational Amplifier, OP Amp IC
Package

PDIP-8
Description

OP Amp Dual GP R-R I/O ±3V/6V 8Pin PDIP Tube
Documentation

Datasheet

TLV2462CP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLV2462CP Specifications

Attribute	Attribute Value

Part Number	TLV2462CP
Manufacturer	TI
ChipWorker Part#	CW31403666
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	80mA @5V
Supply Current	550 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Power Dissipation	1.2 W
Common Mode Rejection Ratio	71 dB
Input Offset Drift	2.00 µV/K
Bandwidth	6.40 MHz
Slew Rate	1.60 V/μs
Gain Bandwidth Product	6.4 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	1.3 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	6.4 MHz
Power Dissipation (Max)	1200 mW
Minimum CMRR Range	71 dB
	expand all
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for portable applications. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters.
The operational amplifier has 6.4 MHz of bandwidth and 1.6 V/µs of slew rate with only 500 µA of supply current, providing good ac performance with low power consumption. Three members of the family offer a shutdown terminal, which places the amplifier in an ultralow supply current mode (IDD = 0.3 µA/ch). While in shutdown, the operational-amplifier output is placed in a high-impedance state. DC applications are also well served with an input noise voltage of 11 nV/Hz and input offset voltage of 100 µV.
This family is available in the low-profile SOT23, MSOP, and TSSOP packages. The TLV2460 is the first rail-to-rail input/output operational amplifier with shutdown available in the 6-pin SOT23, making it perfect for high-density circuits. The family is specified over an expanded temperature range (TA = 40°C to 125°C) for use in industrial control and automotive systems, and over the military temperature range (TA = 55°C to 125°C) for use in military systems.
