TM4C123GH6PZI7 - TI

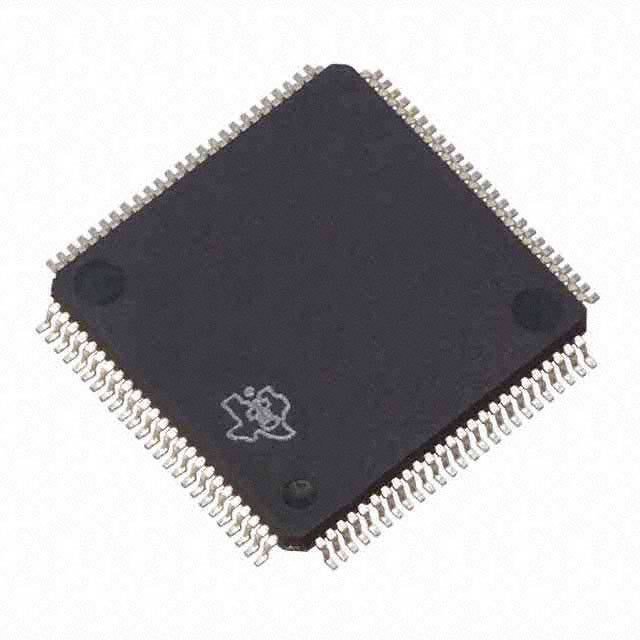

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TM4C123GH6PZI7
Manufacturer

TI
ChipWorker Part#

CW85399961
Category

Microcontroller, MCU IC
Package

LQFP-100
Description

MCU 32Bit Tiva C ARM Cortex M4F RISC 256KB Flash 1.2V/3.3V 100Pin LQFP
Documentation

Datasheet

TM4C123GH6PZI7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TM4C123GH6PZI7 Specifications

Attribute	Attribute Value

Part Number	TM4C123GH6PZI7
Manufacturer	TI
ChipWorker Part#	CW85399961
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	80.0 MHz
Clock Speed	80.0 MHz, 80.0 MHz (max)
RAM Memory Size	32 KB
Number of Bits	12 Bit
FLASH Memory Size	262144 B
Number of UARTs	8 UART
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The TM4C123GH6PZ microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, transportation, and fire and security.
