TPD8E003DQDR - TI

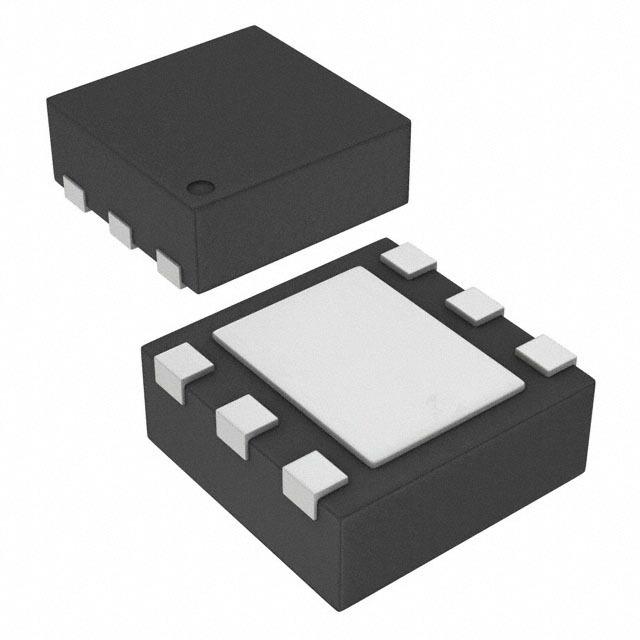

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPD8E003DQDR
Manufacturer

TI
ChipWorker Part#

CW40356040
Category

TVS Diode
Package

WFDFN-8
Description

8Channel ESD Array For Portable Space-Saving Applications 8-WSON -40℃ to 85℃
Documentation

Datasheet

TPD8E003DQDR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPD8E003DQDR Specifications

Attribute	Attribute Value

Part Number	TPD8E003DQDR
Manufacturer	TI
ChipWorker Part#	CW40356040
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WFDFN-8
Operating Voltage	5.5 V
Capacitance	12 pF
Number of Channels	8 Channel
Number of Positions	8 Position
Clamping Voltage	10 V
Peak Pulse Power	55 W
Min Breakdown Voltage	6 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The TPD8E003 device is a unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD8E003 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device provides 8 channels of ESD protection in a space-saving WSON package. Typical applications for the TPD8E003 include Keypad, GPIO, resistive touchscreen, and low-speed memory interfaces. Also, see the TPD2E2U06 and TPD4E05U06 for 2- and 4-channel ESD protection solutions, respectively.
