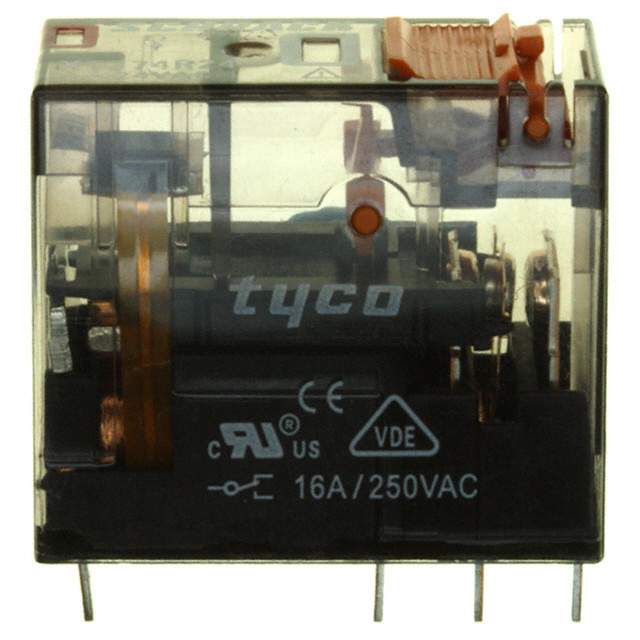

Part No

XT484R24
Manufacturer

TE Connectivity
ChipWorker Part#

CW46347068
Category

Power Relay
Description

Electromechanical Relay 24VAC 350Ω 15A DPDT (( 29mm 13mm 26.7mm)) Plug-In General Purpose Relay
Documentation

Datasheet

XT484R24 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XT484R24 Specifications

Attribute	Attribute Value

Part Number	XT484R24
Manufacturer	TE Connectivity
ChipWorker Part#	CW46347068
Category	Power Relay
Documentation	Datasheet
Mounting Style	Plug In
Number of Pins	8 Pin
Voltage Rating (AC)	400 V
Current Rating	8 A
Contacts Type	DPDT
Contact Current Rating	15 A
Coil Voltage	24 VAC
Coil Current	31.6 mA
Coil Voltage (AC)	24 V
Coil Resistance	350 Ω
Carry Current	8.00 A
Current Rating (Max)	15 A
Coil Power	0.58 VA
Input Power (Max)	2 KVA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	29 mm
Size-Width	13.7 mm
Size-Height	26.7 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536490080
ECCN Code	EAR99

Product Description

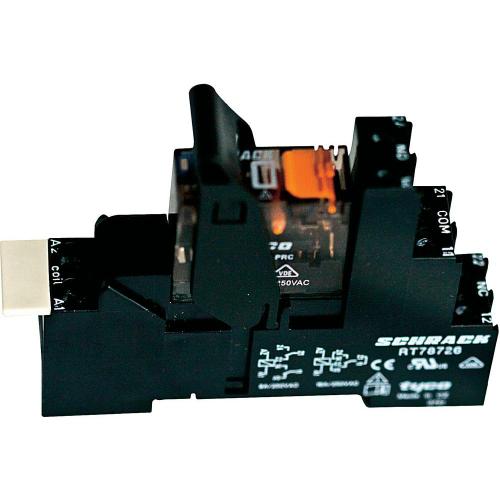

Tyco Electronics now offers several of their popular SCHRACK plug-in relays in “packages”. Each package includes a relay, socket and hold down. Some also include accessories such as protection circuits, LEDs and marking tags. This simplifies ordering and helps prevent situations where the wrong socket might be ordered for a given relay or where quantities of the various components do not correspond.
Packages are available for SNR, XT, PT and RT Series relays. They find application on DIN rails in control panels in industrial machinery, alternative energy systems, elevators and other commercial equipment.
**Features:**
* Several Components Can Be Ordered Under One Part Number
* Quicker and Simpler Than Having to Assemble Components
* Packages Can Simply Be Snapped Onto DIN Rail
* Prevents Situations Where the Wrong Socket Might Be Ordered
