TOP254EN ,AC to DC Converter, AC/DC Power Module - Power Integrations

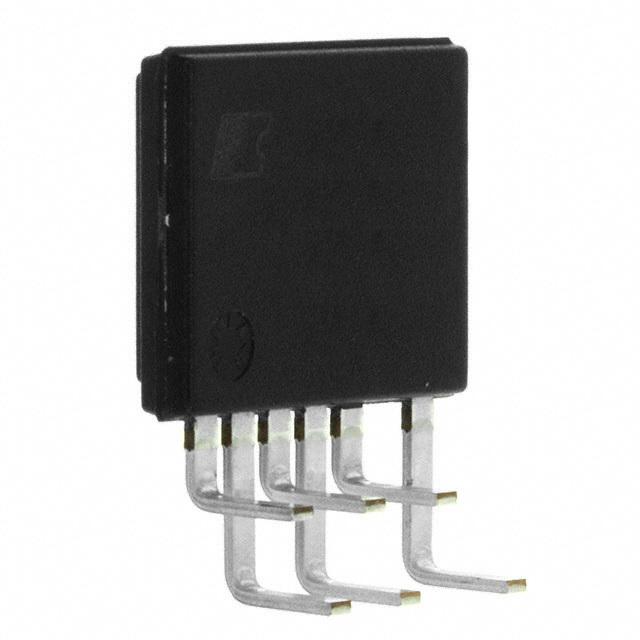

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

67 points

Part No

TOP254EN
Manufacturer

Power Integrations
ChipWorker Part#

CW24208296
Category

AC to DC Converter, AC/DC Power Module
Package

SIP-7
Description

AC-DC Off-Line Switcher IC, TOPSwitch-HX, Flyback, 85VAC - 265VAC, 66kHz, 2.08A out, 62W, SIP-7
Documentation

Datasheet
Ships from

Moscow
Наличие

74 pcs In Stock
Estimated Price

$ 1.08

Buy TOP254EN

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TOP254EN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TOP254EN Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TOP254EN
Manufacturer	Power Integrations
ChipWorker Part#	CW24208296
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	SIP-7
Frequency	66 kHz
Power Rating	62 W
Number of Outputs	1 Output
Output Voltage	700 V
Output Current	2.08 A
Breakdown Voltage	700 V
Number of Positions	7 Position
Power Dissipation	20.0 W
Output Power	43 W
Switching Frequency	66kHz, 132kHz
Duty Cycle	78 %
Input Voltage (Max)	265 VAC
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Current (Max)	1.391 A
Maximum Duty Cycle	83 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	265 VAC
Supply Voltage (Min)	85 VAC
	expand all
Size-Length	10.24 mm
Size-Width	2.06 mm
Size-Height	8.25 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Similar & Replacement Parts

Similar products

Product Description

The TOP254EN is an enhanced EcoSmart™ Integrated Offline Switcher with advanced feature set and extended power range. TOPSwitch-HX incorporates a 700V power MOSFET and high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device. TOPSwitch-HX is an integrated switched mode power supply chip that converts a current at the control input to a duty cycle at the open drain output of a high voltage power MOSFET. It features the high voltage start-up, the cycle-by-cycle current limiting, loop compensation circuitry, auto-restart and thermal shutdown, the TOPSwitch-HX incorporates many additional functions that reduce system cost, increase power supply performance and design flexibility. A patented high voltage CMOS technology allows both the high-voltage power MOSFET and all the low voltage control circuitry to be effectively integrated onto a single monolithic chip.
Multi-mode operation maximizes efficiency at all loads
Low thermal impedance junction-to-case
Low height is ideal for adapters where space is limited
Simple mounting using a clip to aid low manufacturing
Output overvoltage protection is user programmable for latching/non-latching shutdown with AC reset
Allows both primary and secondary sensing
Line undervoltage detection prevents turn-OFF glitches
Line overvoltage shutdown extends line surge limit
Accurate programmable current limit
Optimized line feed-forward for line ripple rejection
Frequency jittering reduces EMI filter
Heat sink is connected to SOURCE for low EMI
Accurate hysteretic thermal shutdown function automatically recovers without requiring a reset
Fully integrated soft-start for minimum start-up stress
Extended creepage between DRAIN and all other pins improves field reliability
Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions
132kHz Frequency reduces transformer and power supply size
