TOP255YN - Power Integrations

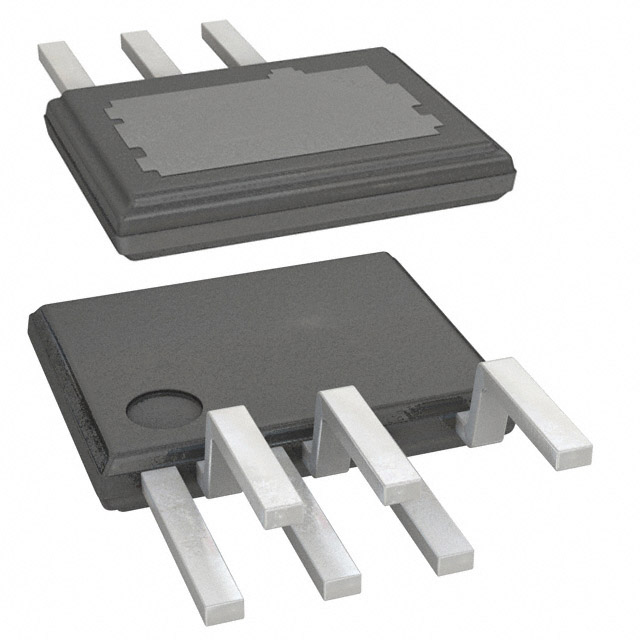

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TOP255YN
Manufacturer

Power Integrations
ChipWorker Part#

CW15770170
Category

AC to DC Converter, AC/DC Power Module
Package

TO-220-7
Description

AC-DC Converters Off-Line Switcher IC 57W
Documentation

Datasheet

TOP255YN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TOP255YN Specifications

Attribute	Attribute Value

Part Number	TOP255YN
Manufacturer	Power Integrations
ChipWorker Part#	CW15770170
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	TO-220-7
Power Rating	81 W
Output Voltage	700 V
Output Current	2.72 A
Breakdown Voltage	700 V
Output Power	81 W
Switching Frequency	132 kHz
Duty Cycle	78 %
Maximum Duty Cycle	78 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	40 ℃
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

* Multi-mode operation maximizes efficiency at all loads * New eSIP-7F and eSIP-7C packages * Low thermal impedance junction-to-case (2 °C per watt) * Low height is ideal for adapters where space is limited * Simple mounting using a clip to aid low cost manufacturing * Horizontal eSIP-7F package ideal for ultra low height adapter and monitor applications * Extended package creepage distance from DRAIN pin to adjacent pin and to heat sink * No heat sink required up to 35 W using P, G and M packages with universal input voltage and up to 48 W at 230 VAC * Output overvoltage protection (OVP) is user programmable for latching/non-latching shutdown with fast AC reset * Allows both primary and secondary sensing * Line undervoltage (UV) detection prevents turn-off glitches * Line overvoltage (OV) shutdown extends line surge limit * Accurate programmable current limit * Optimized line feed-forward for line ripple rejection * 132 kHz frequency (254Y-258Y and all E/L packages) reduces transformer and power supply size * Half frequency option for video applications * Frequency jittering reduces EMI filter cost
