TPD1E6B06DPLR - TI

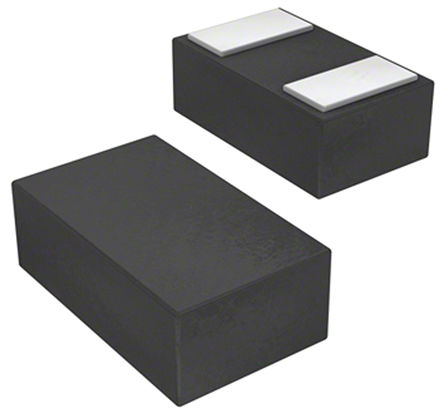

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPD1E6B06DPLR
Manufacturer

TI
ChipWorker Part#

CW14075361
Category

TVS Diode
Package

XFDFN-2
Description

Single-Channel ESD in 0201 Package With 6pF Capacitance and 6V Breakdown 2-X2SON -40℃ to 125℃
Documentation

Datasheet

TPD1E6B06DPLR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPD1E6B06DPLR Specifications

Attribute	Attribute Value

Part Number	TPD1E6B06DPLR
Manufacturer	TI
ChipWorker Part#	CW14075361
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	XFDFN-2
Capacitance	6 pF
Number of Channels	1 Channel
Clamping Voltage	14 V
Test Current	1 mA
Peak Pulse Power	50 W
Min Breakdown Voltage	6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	0.65 mm
Size-Width	0.35 mm
Size-Height	0.27 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The TPD1E6B06 device is a single-channel TVS diode for electrostatic discharge (ESD) protection in a small 0201 package. The TPD1E6B06 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±15-kV contact discharge and ±15-kV air-gap ESD protection. The device has a back-to-back TVS diode configuration for bipolar or bidirectional signal support. The 6-pF line capacitance is suitable to provide transient voltage suppression circuit protection for a wide range of applications, supporting data rates up to 800 Mbps.
Typical application interfaces for the TPD1E6B06 are audio lines (microphone, earphone, and speakerphone), SD interfacing, keypad or other buttons, as well as the VBUS and ID pins of USB ports. With its industry-standard 0201 package, The TPD1E6B06 has an extremely small footprint, making it ideal for space-saving end equipment like mobile phones, tablets, and wearables.
