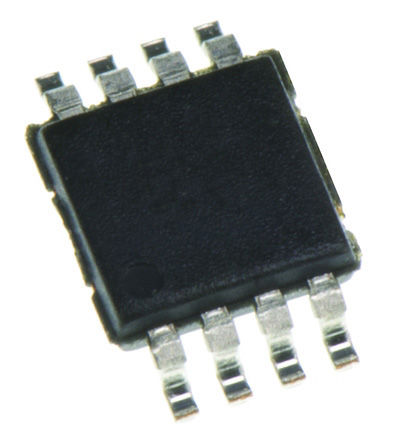

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS2066CDGN
Manufacturer

TI
ChipWorker Part#

CW43475400
Category

Power Distribution
Package

PowerPad-MSOP-8
Description

Texas Instruments TPS2066CDGN, Dual USB Power Switch, High Side, 112mΩ, 4.5V min., 8Pin MSOP
Documentation

Datasheet

TPS2066CDGN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS2066CDGN Specifications

Attribute	Attribute Value

Part Number	TPS2066CDGN
Manufacturer	TI
ChipWorker Part#	CW43475400
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Number of Outputs	2 Output
Input Voltage (DC)	5.00 V
Output Current	1 A
Number of Positions	8 Position
Rise Time	820 µs
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Current (Max)	1 A
Output Current (Min)	1 A
Fall Time	470 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	5 V
	expand all
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The TPS2066CDGN is a dual Power Distribution Switch family intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 0.5 and 2A. The dual family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overcurrent response time eases the burden on the main 5V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turnoff.
Accurate ±20% current limit tolerance
Deglitched fault reporting (FLTx)
Reverse current blocking
Built-in soft start
