TPS55340PWPR - TI

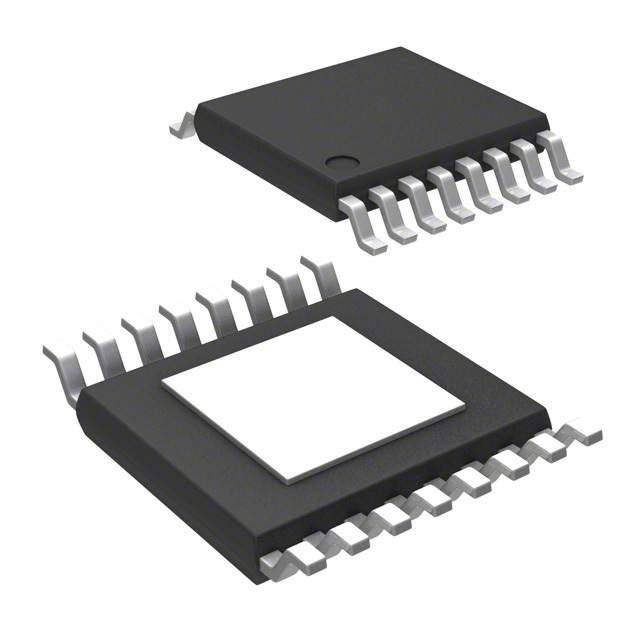

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS55340PWPR
Manufacturer

TI
ChipWorker Part#

CW1454988
Category

DC to DC Converter
Package

HTSSOP-14
Description

Conv DC-DC 2.9V to 32V Step Up Single-Out 2.9V to 38V 5A 14Pin HTSSOP EP T/R
Documentation

Datasheet

TPS55340PWPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS55340PWPR Specifications

Attribute	Attribute Value

Part Number	TPS55340PWPR
Manufacturer	TI
ChipWorker Part#	CW1454988
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Number of Outputs	1 Output
Output Voltage	2.9V ~ 38V
Output Current	5 A
Number of Positions	14 Position
Quiescent Current	500 µA
Number of Regulated Outputs	1 Output
Switching Frequency	94kHz ~ 1.14MHz
Input Voltage (Max)	32 V
Input Voltage (Min)	2.9 V
Output Voltage (Max)	38 V
Output Voltage (Min)	2.9 V
Output Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.9V ~ 32V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* Internal 5-A, 40-V Low-Side MOSFET Switch * 2.9-V to 32-V Input Voltage Range * ±0.7% Reference Voltage * 0.5-mA Operating Quiescent Current * 2.7-µA Shutdown Supply Current * Fixed Frequency Current Mode PWM Control * Frequency Adjustable From 100 kHz to 1.2 MHz * Synchronization Capability to External Clock * Adjustable Soft-Start Time * Pulse Skipping for Higher Efficiency at Light Loads * Cycle-by-Cycle Current Limit, Thermal Shutdown, and UVLO Protection * QFN-16 (3-mm × 3-mm) and HTSSOP-14 Packages With PowerPAD™ * Wide –40°C to 150°C Operating TJ Range
