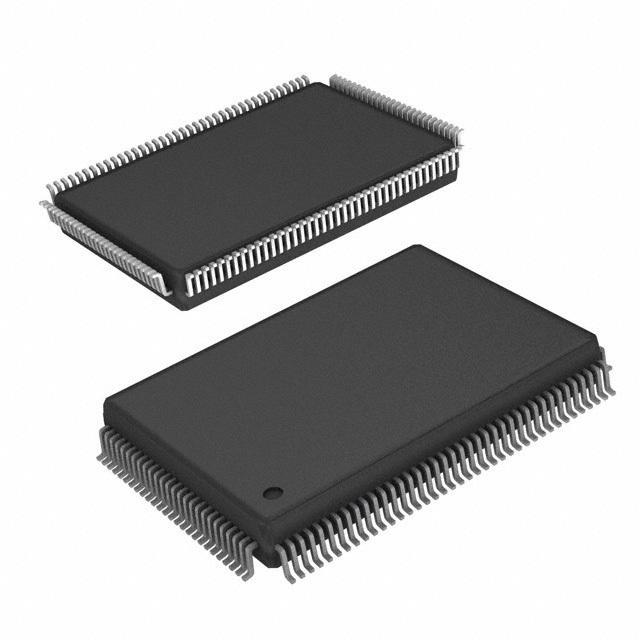

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
17 points
-
Part NoTVP7001
-
ManufacturerTI
-
ChipWorker Part#CW435542400
-
DescriptionTRIPLE 8/10Bit, 165/110MSPS, VIDEO AND GRAPHICS DIGITIZER WITH ANALOG PLL
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие93 pcs In Stock
-
Estimated PricePrice on Request
