UC3846DW ,Voltage Regulator - TI

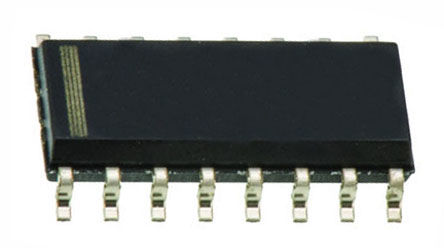

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

208 points

Part No

UC3846DW
Manufacturer

TI
ChipWorker Part#

CW4616984
Category

Voltage Regulator
Package

SOIC-16
Description

Current Mode PWM Controller 500mA 500kHz 16Pin SOIC Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.27

Buy UC3846DW

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

UC3846DW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

UC3846DW Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	UC3846DW
Manufacturer	TI
ChipWorker Part#	CW4616984
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	450 kHz
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Input Voltage (DC)	15.0 V
Output Voltage	5.1 V
Output Current	500 mA
Supply Current	21 mA
Number of Positions	16 Position
Power Dissipation	1 W
Quiescent Current	17.0 mA
Number of Regulated Outputs	2 Output
Rise Time	50 ns
Switching Frequency	500 kHz
Topology	Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Duty Cycle	50 %
Maximum Duty Cycle	50 %
Fall Time	50 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	7.7V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	8 V
Input Voltage	15 V
	expand all
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The UC3846DW is a current-mode Pulse Width Modulation (PWM) Controller provides all of the necessary features to implement fixed-frequency, current-mode control schemes while maintaining a minimum external parts count. The superior performance of this technique can be measured in improved line regulation, enhanced load response characteristics and a simpler, easier-to-design control loop. Topological advantages include inherent pulse-by-pulse current limiting capability, automatic symmetry correction for push-pull converters and the ability to parallel while maintaining equal current sharing. The protection circuitry includes built-in under-voltage lockout and programmable current limit, in addition to soft-start capability. A shutdown function is also available, which can initiate either a complete shutdown with automatic restart or latch the supply off. Other features include fully-latched operation, double-pulse suppression.
Automatic feed forward compensation
Programmable pulse-by-pulse current limiting
Automatic symmetry correction in push-pull configuration
Enhanced load response characteristics
Parallel operation capability for modular power systems
Differential current sense amplifier with wide common mode range
Double-pulse suppression
500mA (Peak) Totem-pole outputs
±1% Band gap reference
Undervoltage lockout
Soft-start capability
Shutdown terminal
Error amplifier
Green product and no Sb/Br
