UC3872N ,Active Chip - TI

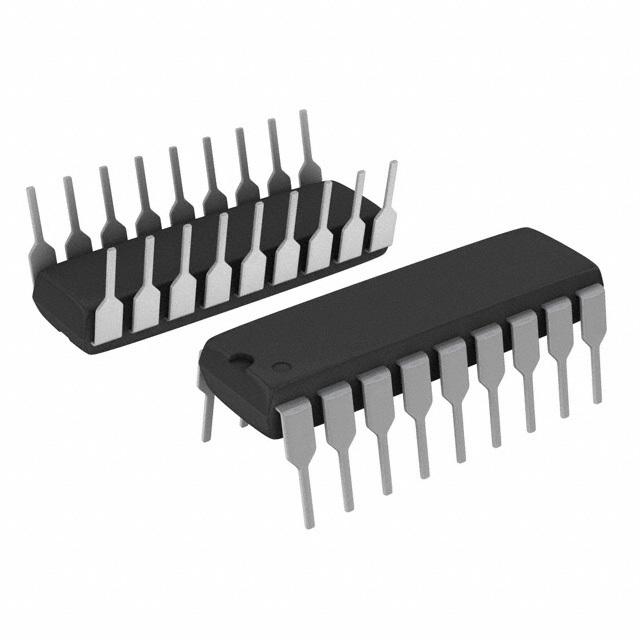

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

98 points

Part No

UC3872N
Manufacturer

TI
ChipWorker Part#

CW83628467
Category

Active Chip
Package

DIP-14
Description

Resonant Lamp Driver 24V 14Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

337382 pcs In Stock
Estimated Price

$ 1.97

Buy UC3872N

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

UC3872N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

UC3872N Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	UC3872N
Manufacturer	TI
ChipWorker Part#	CW83628467
Category	Active Chip
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	57kHz ~ 78kHz
Supply Voltage (DC)	4.50V (min)
Supply Current	6 mA
Number of Positions	14 Position
Threshold Voltage	4.20 V
Output Voltage (Max)	14.9 V
Output Current (Max)	100 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 24V
Supply Voltage (Max)	24 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Obsolete
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The UC3872N is a resonant Lamp Ballast Controller optimized for driving cold cathode fluorescent, neon and other gas discharge lamps. The resonant power stage develops a sinusoidal lamp drive voltage and minimizes switching loss and EMI generation. Lamp intensity adjustment is accomplished with a buck regulator, which is synchronized to the external power stage"s resonant frequency. Suitable for battery-powered applications, the UC3872 draws only 1µA when disabled. Soft-start and open lamp detect circuitry have been incorporated to minimize component stresses. Open lamp detection is enabled at the completion of a soft start cycle. The chip is optimized for smooth duty cycle control to 100%. Other features include a precision 1.2% reference, under-voltage lockout, accurate minimum and maximum frequency control.
Controls different types of lamps - Cold cathode fluorescent, neon and gas discharge
Zero voltage switching (ZVS) of push-pull drivers
Accurate control of lamp current
Variable lamp intensity control
Open lamp detection circuitry
10mA ZD input current
1W Power dissipation at TA=25°C
