UES1103 - Microsemi

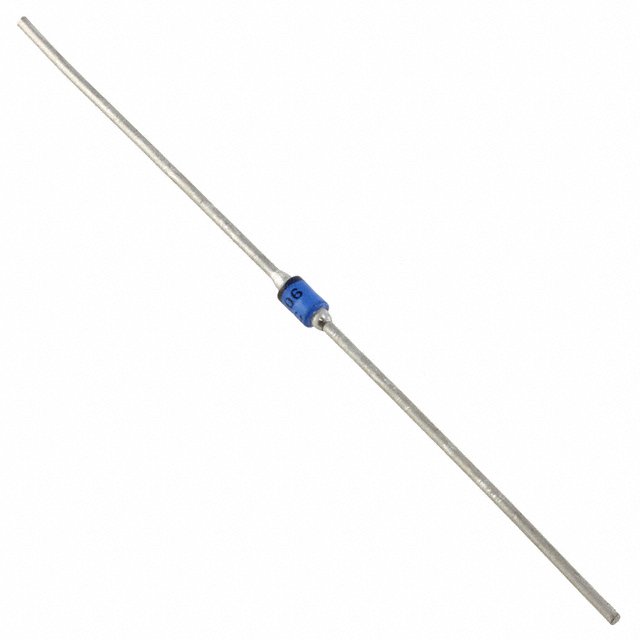

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

UES1103
Manufacturer

Microsemi
ChipWorker Part#

CW77055670
Category

Power Diode
Package

A, Axial
Description

Diode Switching 150V 2.5A 2Pin Case A
Documentation

Datasheet

UES1103 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

UES1103 Specifications

Attribute	Attribute Value

Part Number	UES1103
Manufacturer	Microsemi
ChipWorker Part#	CW77055670
Category	Power Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	A, Axial
Forward Voltage	975mV @2A
Reverse recovery time	25 ns
Forward Current	2500 mA
Forward Current (Max)	2.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status

Product Description

2.5A, 150V Surface Mount Ultra-fast Rectifier
* * *
