ULN2003V12DR ,BJT Transistor, BJT - TI

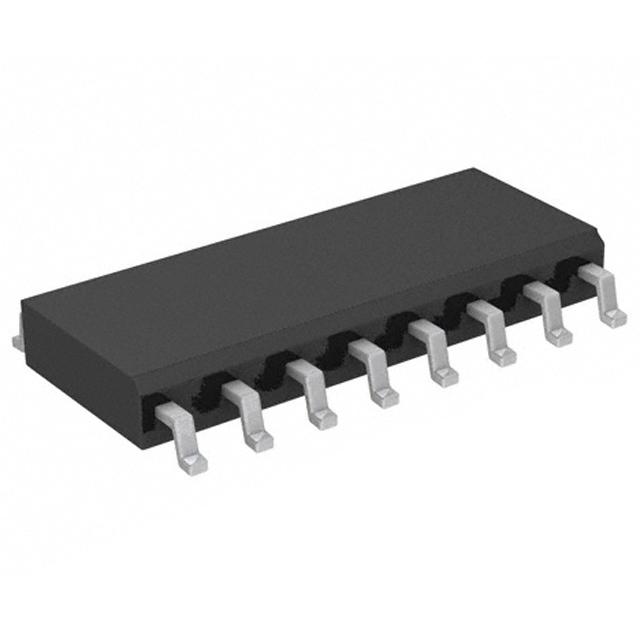

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

142 points

Part No

ULN2003V12DR
Manufacturer

TI
ChipWorker Part#

CW5374563
Category

BJT Transistor, BJT
Package

SOIC-16
Description

Low Power 7Channel Relay Driver 16-SOIC -40℃ to 125℃
Documentation

Datasheet
Ships from

Moscow
Наличие

4 pcs In Stock
Estimated Price

$ 0.24

Buy ULN2003V12DR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ULN2003V12DR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ULN2003V12DR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ULN2003V12DR
Manufacturer	TI
ChipWorker Part#	CW5374563
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	1.80V (min)
Number of Outputs	7 Output
Output Voltage	16 V
Output Current	140 mA
Power Dissipation	0.86 W
Breakdown Voltage (Collector to Emitter)	50 V
Drivers Per Package	7
Input Voltage (Max)	5.5 V
Output Current (Max)	140 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	860 mW
Input Voltage	5.5 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The ULN2003V12DR is a Low-power 7-channel Relay Driver features 7 low output impedance drivers that minimize on-chip power dissipation. When driving a typical 12V relay coil a ULN2003V12 will dissipate up to 12 times lower power than an equivalent ULN2003A. The ULN2003V12 supports 3.3 to 5V CMOS logic input interface thus making it compatible to a wide range of micro-controllers and other logic interfaces. It features an improved input interface that minimizes the input DC current drawn from the external drivers. The ULN2003V12 features an input RC snubber that greatly improves its performance in noisy operating conditions. The ULN2003V12 channel inputs feature an internal input pull-down resistor thus allowing input logic to be tri-stated. This relay driver provides flexibility of increasing current sink capability through combining several adjacent channels in parallel.
7-channel High current sink driver
Supports up to 20V output pull-up voltage
Supports wide range of low and high voltage relays and inductive coils
Low output VOL of 0.6V (typical)
Compatible to 3.3 and 5.0V micro-controllers and logic interface
Internal free-wheeling diodes for inductive kick-back protection
Input pull-down resistors allows tri-stating the input driver
Input RC-snubber to eliminate spurious operation in noisy environment
Low input and output leakage currents
Easy to use parallel interface
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
