US1M ,Power Diode - Multicomp

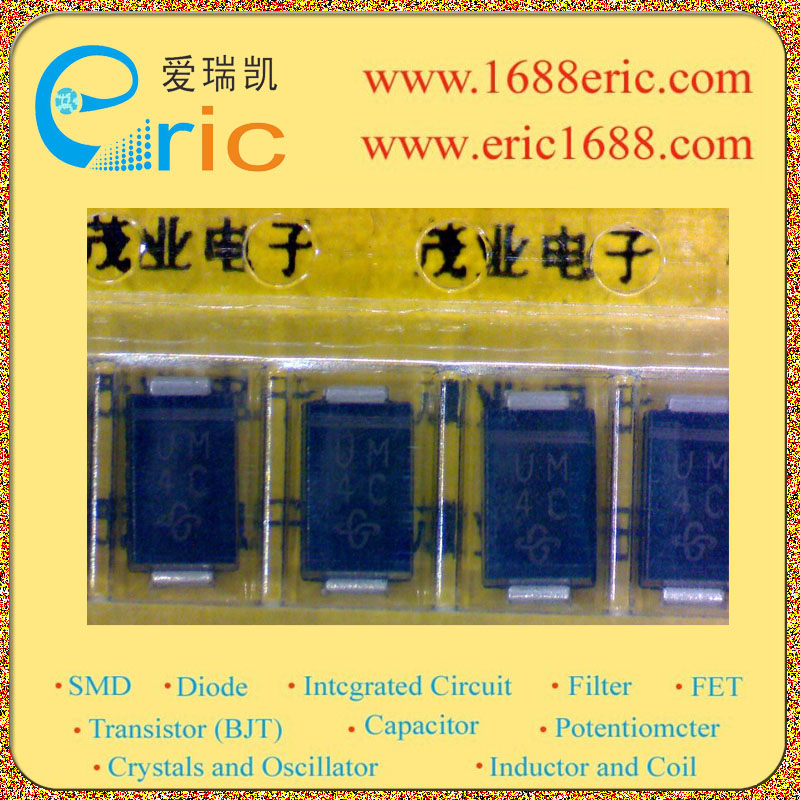

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

56 points

Part No

US1M
Manufacturer

Multicomp
ChipWorker Part#

CW38891159
Category

Power Diode
Package

DO-214AC
Description

MULTICOMP US1M Fast / Ultrafast Power Diode, 1kV, 1A, Single, 1.7V, 75ns, 30A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.12

Buy US1M

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

US1M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

US1M Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	US1M
Manufacturer	Multicomp
ChipWorker Part#	CW38891159
Category	Power Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Forward Voltage	1.70 V
Reverse recovery time	75 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.7 V
Operating Temperature (Max)	150 ℃
	expand all
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The US1x series from Multicomp are surface mount ultra fast diode in SMB (DO-214AC) package. The device features glass passivated chip junction, low forward voltage and low power loss, ultrafast recovery time for high efficiency and low profile package.
Ideal for automated placement
Maximum repetitive reverse voltage Vrrm of 50V, 100V, 200V, 400V, 600V, 800V and 1KV
Non repetitive peak forward surge current IFSM of 30A
Maximum forward Voltage VF of 1.7V at IF 1A
Maximum forward current IF(AV) of 1A
Operating temperature range -65°C to 150°C
Reverse recovery time trr of 75ns
