XC6203 - Torex Semiconductor

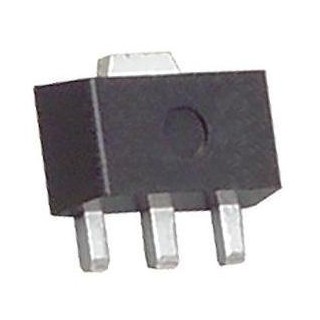

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

21 points

Part No

XC6203
Manufacturer

Torex Semiconductor
ChipWorker Part#

CW322520771
Package

SOT-223
Description

POSITIVE VOLTAGE REGULATORS
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy XC6203

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

XC6203 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

XC6203 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	XC6203
Manufacturer	Torex Semiconductor
ChipWorker Part#	CW322520771
Documentation	Datasheet
Case/Package	SOT-223
Output Voltage	1.8V ~ 6V
Output Current	400 mA
Input Voltage	12 V
	expand all
Operating Temperature	-40℃ ~ 85℃
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

First Components International

Product Description

■General Description
The XC6203E series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.
The series provides large currents with a significantly small dropout voltage.
The XC6203E consists of a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between a voltage of 1.8V and 6.0V.
SOT-89 (500mW), SOT-223 (1200mW) and TO-92 (300mW) package.
◆CMOS Low Power Consumption (16µA max)
◆Dropout Voltage : 150mV @ 100mA,
300mV @ 200mA
◆Maximum Output Current : more than 400mA (3.3V)
◆Highly Accurate : ±2%
◆SOT-89 / SOT-223 / TO-92 Package
■Features
Maximum Output Current : 400mA
Maximum Operating Voltage : 8V
Output Voltage Range : 1.8V ~ 6.0V
(selectable in 0.1V steps)
Highly Accurate : ± 2%
Low Power Consumption : TYP 8.0 µA
Output Voltage Temperature Characteristics
: TYP ±100ppm/°C
Operational Temperature Range : -40°C ~ 85°C
Ultra Small Packages : SOT-89, SOT223, TO-92
■Applications
●Battery Powered Equipment
●Reference Voltage Sources
●Cameras, Video Cameras
●CD-ROMs, DVDs
●Palmtops
●Portable Audio Video Equipment
