2864176 - Phoenix

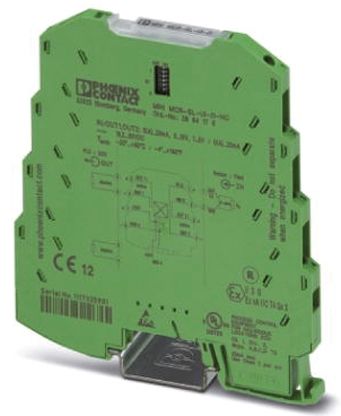

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2864176
Manufacturer

Phoenix
ChipWorker Part#

CW40684641
Category

Relay, I/O Module
Description

Phoenix Contact Signal Duplicator 0 10V, 0 20mA Input, 0 20mA Output
Documentation

Datasheet

2864176 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2864176 Specifications

Attribute	Attribute Value

Part Number	2864176
Manufacturer	Phoenix
ChipWorker Part#	CW40684641
Category	Relay, I/O Module
Documentation	Datasheet
Mounting Style	Snap-In
Number of Channels	2 Channel
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	24 VDC
	expand all
Size-Length	4.0 in
Size-Width	0.2 in
Size-Height	3.7 in
Color	Green
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8543709650
ECCN Code	EAR99

Product Description

Measuring temperatures, converting or isolating signals — No problem with the new analog range from Phoenix Contact. MINI Analog provides state-of-the-art technology for extreme flexibility and maximum ease of installation and configuration.
The devices are supplied with power by simply plugging them onto the power supply bridge on the DIN rail. In addition, individual devices can be easily replaced during operation without the power being interrupted to the other devices.
**Features:**
* Test (Isolation) Voltage 1.5 kVAC
* Supply Voltage: 19.2 to 30 VDC
* Temperature Range: –20°C to +60°C
* Transmission Error < 0.2%
* Screw or Spring-Cage Connection System
* Power Supply Bridge for Simple Handling
* 6 mm Width
