2866310 ,AC to DC Converter, AC/DC Converter - Phoenix

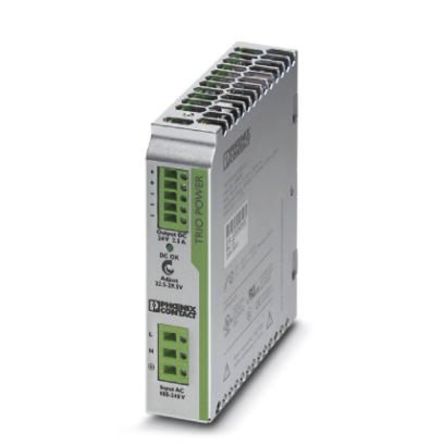

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

62 points

Part No

2866310
Manufacturer

Phoenix
ChipWorker Part#

CW7663096
Category

AC to DC Converter, AC/DC Converter
Package

120
Description

Power Supply; AC-DC; 24V; 5A; 85-264V In; Enclosed; DIN Rail Mount; 120W; TRIO Series
Documentation

Datasheet
Ships from

Moscow
Наличие

407 pcs In Stock
Estimated Price

$ 136.5

Buy 2866310

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2866310 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2866310 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2866310
Manufacturer	Phoenix
ChipWorker Part#	CW7663096
Category	AC to DC Converter, AC/DC Converter
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Pins	8 Pin
Case/Package	120
Power Rating	120 W
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	5 A
Output Power	120 W
Isolation Voltage	4 kV
Input Voltage (Max)	264 VAC
Input Voltage (Min)	85 VAC
Input Voltage (AC Max)	264 V
Input Voltage (AC Min)	85 V
Output Voltage (Max)	29.5 VDC
Output Voltage (Min)	22.5 VDC
Output Current (Max)	5 A
Input Power (Max)	120 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Input Voltage	100VAC ~ 240VAC
	expand all
Size-Length	115 mm
Size-Width	40 mm
Size-Height	130 mm
Weight	600 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8504407007
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The TRIO Power supply is a general purpose, single phase, DIN-rail mountable power supply which addresses applications requiring 2.5 to 20 amps of 24 VDC power.
Description:
The TRIO power supply economically provides exceptional power quality and reliability in an extremely compact form factor.
The rugged, ultra-narrow, zinc-plated steel housing is a great space saver. From TRIO you get the same exceptional power output regulation you have come to expect from Phoenix Contact range of power suppliers. In addition, the TRIO also features the same high MTBF rating of >500,000 hours in accordance with IEC 61709 and is backed by a five-year, USA warranty.
The TRIO-PS/1AC/24DC/2.5 provides 2.5 Amps at 24 VDC
* Narrow, zinc-plated steel housing provides a compact mounting width of only 40 mm
* >500,000 hours MTBF rating at full nominal load in acc. with IEC 61709 (SN 29500)
* Wide operating temperature of -25 °C to 70 °C (> 55° C derating)
* Built in LED diagnostic indication
* Universal, full spectrum 85 to 264 VAC input range
* Over-voltage and under voltage compensation
* Adjustable 22.5 to 29.5 VDC output
* Built-in load sharing capability for parallel operation and increased output current
* Built-in cable tie-wrap holder
* Built-in transient surge protection
* U/I characteristic overload protection
* UL 508 listed and CE for worldwide use
* Three DC grounding terminals
