BU508A - ST Microelectronics

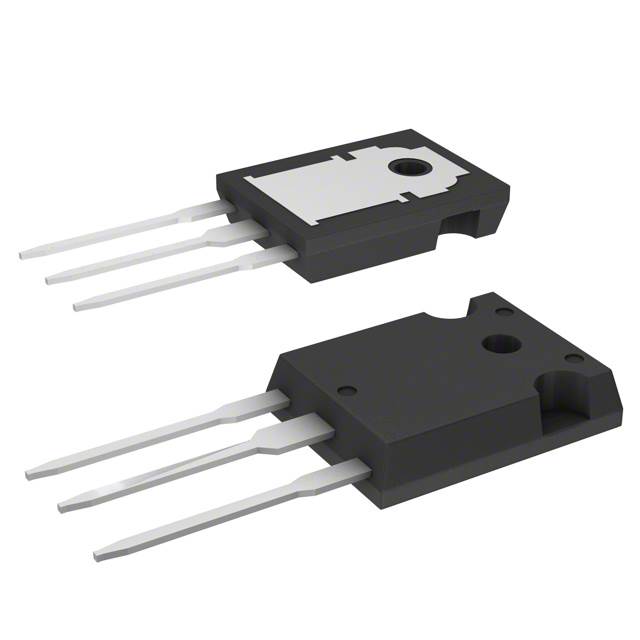

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BU508A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW119474870
Category

BJT Transistor, BJT
RoHS

Lead free / RoHS Compliant
Description

Trans GP BJT NPN 700V 8A 3Pin(3+Tab) TO-218
Documentation

Datasheet

BU508A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BU508A Specifications

Attribute	Attribute Value

Part Number	BU508A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW119474870
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	700 V
Current Rating	8.00 A
Power Dissipation	125 W
Breakdown Voltage (Collector to Emitter)	700 V
Input Power (Max)	125 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	125000 mW
	expand all
Size-Length	15.2 mm
Size-Width	4.9 mm
Size-Height	12.2 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The BU208A, BU508A and BU508AFI are manufactured using Multiepitaxial Mesa technology for cost-effective high performance and use a Hollow Emitter structure to enhance switching speeds.
■ STMicroelectronics PREFERRED SALESTYPES
■ HIGH VOLTAGE CAPABILITY (> 1500 V)
■ FULLY INSULATED PACKAGE (U.L. COMPLIANT) FOR EASY MOUNTING
APPLICATIONS:
■ HORIZONTAL DEFLECTION FOR COLOUR TV
