NCS36000DG - ON Semiconductor

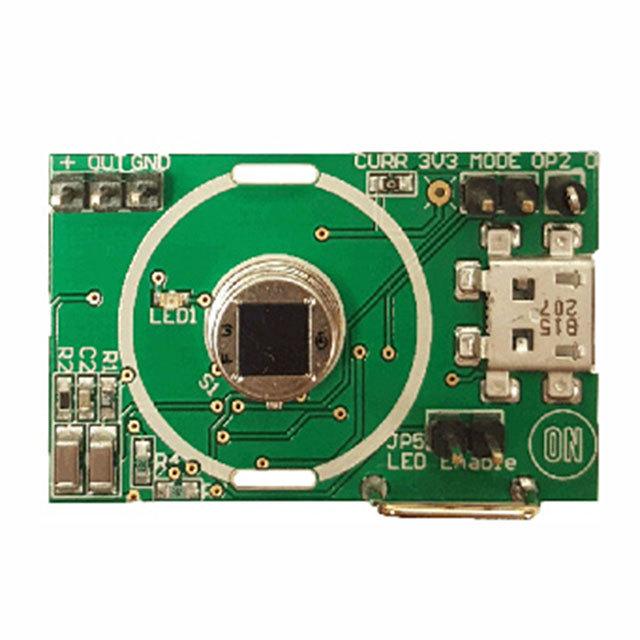

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCS36000DG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW22783461
Category

Operational Amplifier, OP Amp IC
Package

SOIC-14
Description

Low Noise Amplifiers and LDO Regulator 14Pin SOIC Rail
Documentation

Datasheet

NCS36000DG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCS36000DG Specifications

Attribute	Attribute Value

Part Number	NCS36000DG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW22783461
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Halogen Free Status	Halogen Free
Supply Current	50 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Input Voltage	3V ~ 5.75V
	expand all
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Get the most out of your signals with this NCS36000DG preamplifier from ON Semiconductor. The NCS36000DG OP amp circuits from ON Semiconductor will make your life easier when it comes to creating integrated circuits. This part has a temperature range of -40 °C to 85 °C. This product comes in rail packaging to keep individual parts separated and protected.
