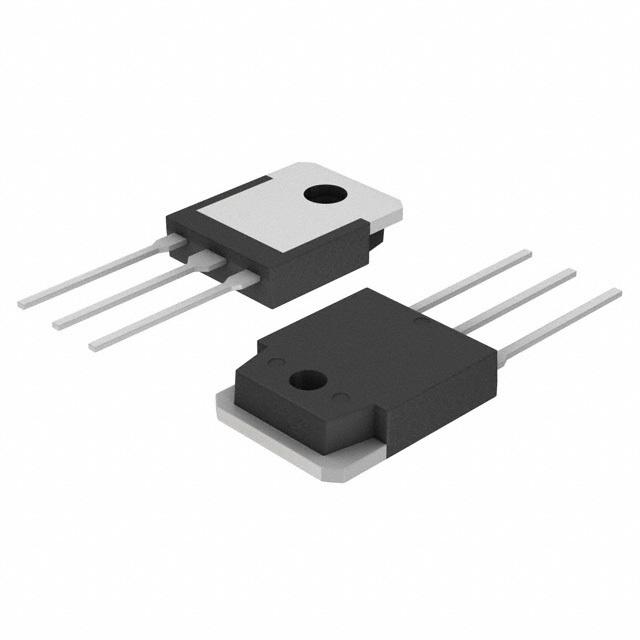

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2STC5200
Manufacturer

ST Microelectronics
ChipWorker Part#

CW52507496
Category

BJT Transistor, BJT
Package

TO-264-3
Description

TO-264 NPN 230V 15A
Documentation

Datasheet

2STC5200 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2STC5200 Specifications

Attribute	Attribute Value

Part Number	2STC5200
Manufacturer	ST Microelectronics
ChipWorker Part#	CW52507496
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Frequency	30 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	150 W
Breakdown Voltage (Collector to Emitter)	230 V
Continuous Collector Current	15A
hFE Min	80 @1A, 5V
Input Power (Max)	150 W
DC Current Gain (hFE)	80
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 W
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Description
This device is a NPN transistor manufactured using new BiT-LA (Bipolar Transistor for linear amplifier) technology. The resulting transistor shows good gain linearity behaviour.
Features
■ High breakdown voltage VCEO > 230V
■ Complementary to 2STA1943
■ Fast-switching speed
■ Typical fT = 30 MHz
Application
■ Audio power amplifier
