30BCF10 - TE Connectivity

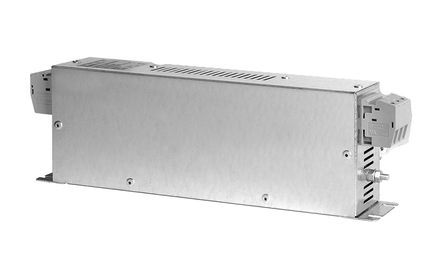

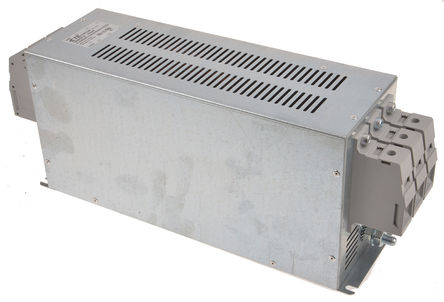

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

30BCF10
Manufacturer

TE Connectivity
ChipWorker Part#

CW64893867
Category

Filter
Description

Power Line Filter RFI 50Hz/60Hz 30A 480VAC Terminal Block Flange Mount
Documentation

Datasheet

30BCF10 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

30BCF10 Specifications

Attribute	Attribute Value

Part Number	30BCF10
Manufacturer	TE Connectivity
ChipWorker Part#	CW64893867
Category	Filter
Documentation	Datasheet
Mounting Style	Chassis
Voltage Rating (DC)	480 V
Voltage Rating (AC)	480 V
Operating Voltage	480 VAC
Current Rating	30 A
Capacitance	5 µF
Inductance	1.61 mH
Current Rating (Max)	30 A
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating (Max)	480 VAC
Voltage Rating	480 VAC
	expand all
Size-Height	85 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	8548900100
ECCN Code	EAR99

Product Description

The BCF Series is compact, lightweight “bookform” filters ideal for applications requiring very high attenuation in the frequency range between 100 kHz and 30 MHz.*Maximum Leakage Current** (**Line-to-Ground**): 30 mA @ 400 VAC, 60 Hz. **Hipot Rating** (1 minute): **Line-to-Ground** — 1850 VDC; **Line-to-Line** — 1850 VDC. **Operating Frequency**: DC to 60 Hz. **Maximum Rated Voltage**: **Phase-to-Phase** — 480 VAC.
