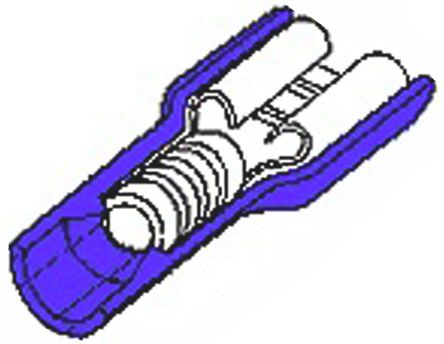

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part No328307
-
ManufacturerTE Connectivity
-
ChipWorker Part#CW9899250
-
CategoryTerminal Block, Connector Terminal
-
Package-
-
DescriptionClosed End Splice, PIDG Series, Crimp, 22AWG, 18AWG, 0.9mm², Red
-
DocumentationDatasheet
