42CTQ030 - International Rectifier

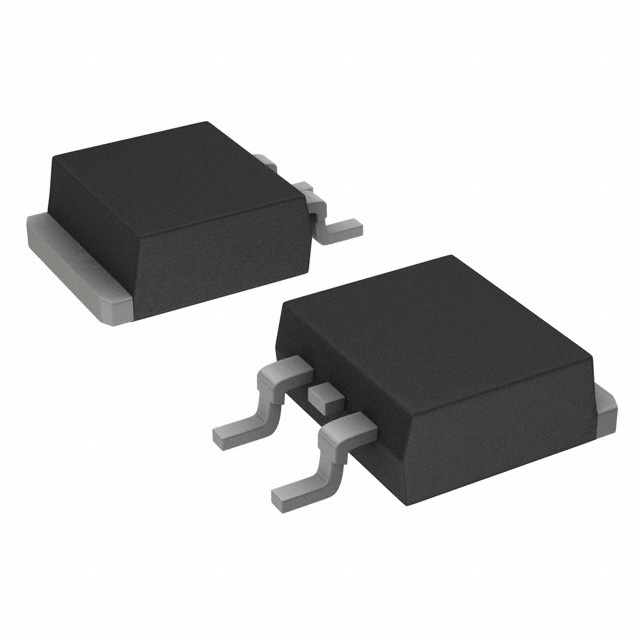

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

42CTQ030
Manufacturer

International Rectifier
ChipWorker Part#

CW329887837
Category

Power Diode
RoHS

Lead free / RoHS Compliant
Description

30V 40A Schottky Common Cathode Diode in a TO-220AB package
Documentation

Datasheet

42CTQ030 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

42CTQ030 Specifications

Attribute	Attribute Value

Part Number	42CTQ030
Manufacturer	International Rectifier
ChipWorker Part#	CW329887837
Category	Power Diode
Documentation	Datasheet
Mounting Style	Through Hole
Voltage Rating (DC)	30.0 V
Current Rating	40.0 A
Capacitance	2.84 nF
Forward Voltage	480 mV
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description/Features
This center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
150° C TJ operation
Center tap configuration
Very low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
