742792693 - Wurth Electronics

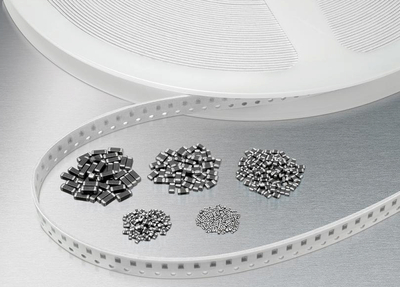

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

742792693
Manufacturer

Wurth Electronics
ChipWorker Part#

CW5892359
Category

Ferrite
Package

0603
Description

Ferrite Beads Multi-Layer 2.2KΩ 25% 100MHz 50mA 800mOhm DCR 0603 T/R
Documentation

Datasheet

742792693 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

742792693 Specifications

Attribute	Attribute Value

Part Number	742792693
Manufacturer	Wurth Electronics
ChipWorker Part#	CW5892359
Category	Ferrite
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	1608
Case/Package	0603
Current Rating	50 mA
Capacitance Tolerance	±25 %
Resistance	800 mΩ
Test Frequency	100 MHz
DC Resistance (DCR)	≤800 mΩ
Current Rating (Max)	50 mA
Current Rating (DC)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.8 Ω
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The WE-CBF series from Wurth Elektronik are surface mount EMI suppression ferrite beads. These ferrite beads offer excellent anti EMI properties and low DC resistance. WE-CBF ferrite beads can be soldered directly on printed circuit board.
EIA 0402, 0603, 0805, 1206, 1210, 1806, 1812 chip sizes available
Reliable Ni-Sn electrodes
Impedance at 100MHz ranges from 5ohm to 27Kohm
Rated current rating from 50mA to 6A
DC Resistance ranges from 8mohm to 1.5ohm
Operating temperature range -55°C to 125°C
Suitable for reflow soldering process
