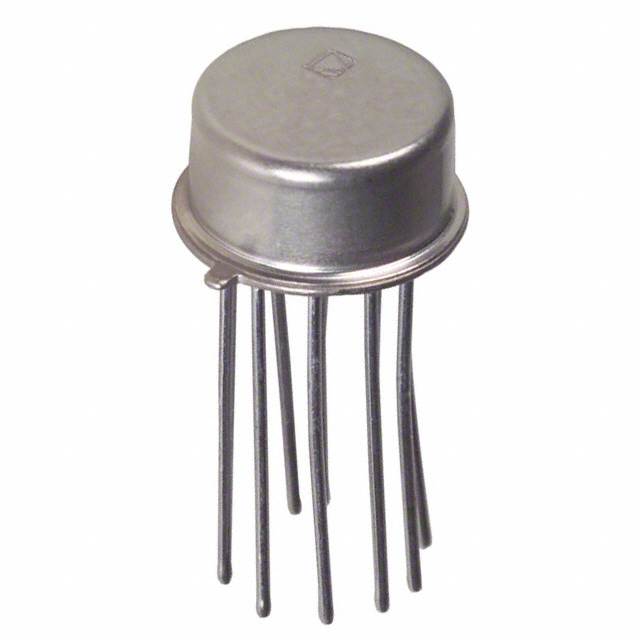

AD534KD ,Active Chip - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

152 points

Part No

AD534KD
Manufacturer

ADI
ChipWorker Part#

CW24633396
Category

Active Chip
Package

CDIP-14
Description

Analog Multiplier/Divider 4Bit 14Pin TO-116 Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

1554 pcs In Stock
Estimated Price

$ 62.68

Buy AD534KD

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD534KD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD534KD Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD534KD
Manufacturer	ADI
ChipWorker Part#	CW24633396
Category	Active Chip
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-14
Supply Voltage (DC)	8.00V (min)
Supply Current	6.00 mA
Number of Circuits	4 Circuit
Number of Positions	14 Position
Number of Bits	4 Bit
Power Dissipation	500 mW
Slew Rate	20.0 V/μs
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
Supply Voltage (Max)	18 V
Supply Voltage (Min)	8 V
	expand all
Size-Length	17.78 mm
Size-Width	7.37 mm
Size-Height	2.41 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

PRODUCT DESCRIPTION
The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum
multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip
thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs,
including the Z-input, a feature which greatly increases its flexibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this
can be reduced to values as low as 3 V.
FEATURES
Pretrimmed to 60.25% max 4-Quadrant Error (AD534L)
All Inputs (X, Y and Z) Differential, High Impedance for [(X1– X2) (Y1– Y2)/10 V] + Z2 Transfer Function
Scale-Factor Adjustable to Provide up to X100 Gain
Low Noise Design: 90mV rms, 10 Hz–10 kHz
Low Cost, Monolithic Construction
Excellent Long Term Stability
APPLICATIONS
High Quality Analog Signal Processing
Differential Ratio and Percentage Computations
Algebraic and Trigonometric Function Synthesis
Wideband, High-Crest rms-to-dc Conversion
Accurate Voltage Controlled Oscillators and Filters
Available in Chip Form
