AD652 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD652
Manufacturer

ADI
ChipWorker Part#

CW430819071
Description

Monolithic Synchronous Voltage-to-Frequency Converter
Documentation

Datasheet

AD652 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD652 Specifications

Attribute	Attribute Value

Part Number	AD652
Manufacturer	ADI
ChipWorker Part#	CW430819071
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown

Product Description

PRODUCT DESCRIPTION

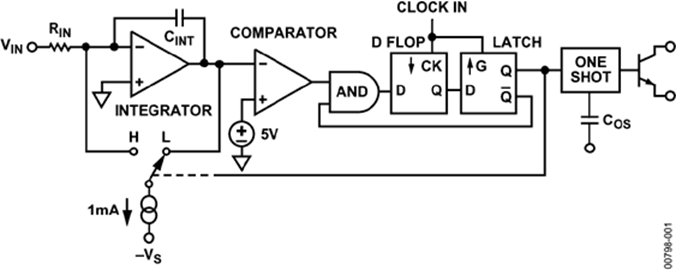

The AD652 synchronous voltage-to-frequency converter (SVFC) is a powerful building block for precision analog-to digital conversion, offering typical nonlinearity of 0.002% (0.005% maximum) at a 100 kHz output frequency. The inher ent monotonicity of the transfer function and wide range of clock frequencies allow the conversion time and resolution to be optimized for specific applications.
FEATURES
Full-scale frequency (up to 2 MHz) set by external system clock
Extremely low linearity error (0.005% max at 1 MHz FS, 0.02% max at 2 MHz FS)
No critical external components required
Accurate 5 V reference voltage
Low drift (25 ppm/°C max)
Dual- or single-supply operation
Voltage or current input
MIL-STD-883 compliant versions available
