AD7880 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7880
Manufacturer

ADI
ChipWorker Part#

CW430803703
Description

CMOS, Single +5V Supply, Low Power, 12Bit Sampling ADC
Documentation

Datasheet

AD7880 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7880 Specifications

Attribute	Attribute Value

Part Number	AD7880
Manufacturer	ADI
ChipWorker Part#	CW430803703
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details

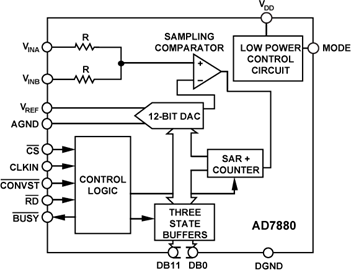

The AD7880 is a high speed, low power, 12-bit A/D converter which operates from a single +5 V supply. It consists of a 3 µs track/hold amplifier, a 12 µs successive-approximation ADC, versatile interface logic and a multiple-input range circuit. The part also includes a power save feature.
An internal resistor network allows the part to accept both unipolar and bipolar input signals while operating from a single +5 V supply. Fast bus access to modern microprocessors and digital signal processors.
The AD7880 features a total throughput time of 15 µs and can convert full power signals up to 33 kHz with a sampling frequency of 66 kHz.
In addition to the traditional dc accuracy specifications such as linearity, full scale and offset errors, the AD7880 is also fully specified for dynamic performance parameters including harmonic distortion and signal-to-noise ratio.

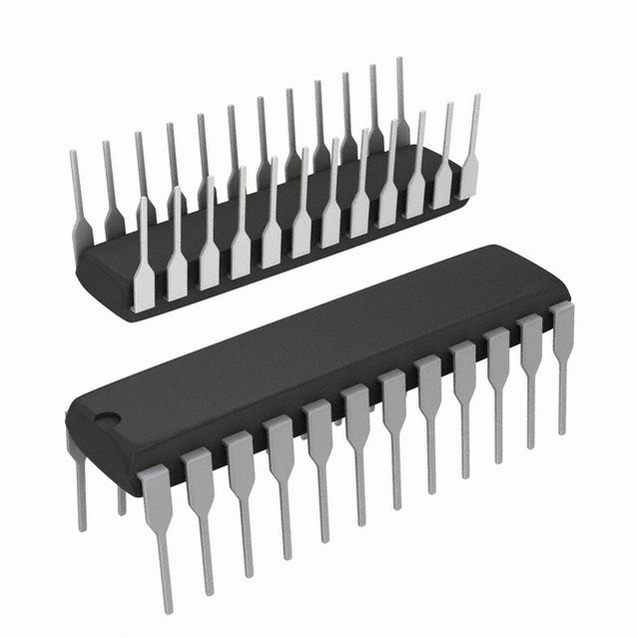

The AD7880 is fabricated in Analog Devices" Linear Compatible CMOS (LC2MOS) process, a mixed technology process that combines precision bipolar circuits with low power CMOS logic. The part is available in a 24-pin, 0.3 inch wide, plastic or hermetic dual-in-line package (DIP) as well as a small 24-lead SOIC package.
### Features and Benefits
12-Bit Monolithic A/D Converter
66 kHz Throughput Rate
\- 12 µs Conversion Time
\- 3 µs On-Chip Track/Hold Amplifier
70 dB SNR
|
Low Power:
\- Power Save Mode: 2 mW typ
\- Normal Operation: 25 mW typ
Fast Data Access Time: 57 ns
Small 24-Lead SOIC and 0.3" DIP Packages
---|---
