NDS331N - Fairchild

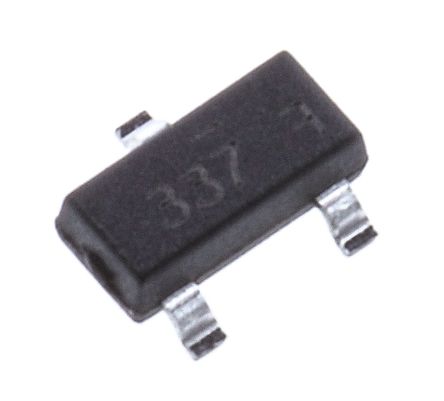

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoNDS331N
-
ManufacturerFairchild
-
ChipWorker Part#CW6301038
-
CategoryMOSFET, MOSFET Transistor
-
PackageSOT-23-3
-
DescriptionFAIRCHILD SEMICONDUCTOR NDS331N MOSFET Transistor, N Channel, 1.3A, 20V, 0.11Ω, 4.5V, 700mV
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
NDS331N Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | - | 6 - 8 {{delivery_date}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
NDS331N Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | NDS331N |
| Manufacturer | Fairchild |
| ChipWorker Part# | CW6301038 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 20.0 V |
| Current Rating | 1.30 A |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.11 Ω |
| Polarity | N-Channel |
| Power Dissipation | 500 mW |
| Threshold Voltage | 700 mV |
| Drain to Source Voltage (Vds) | 20 V |
| Breakdown Voltage (Drain to Source) | 20.0 V |
| Breakdown Voltage (Gate to Source) | 8.00 V |
| Continuous Drain Current (Ids) | 1.30 A |
| Rise Time | 25 ns |
| Input Capacitance (Ciss) | 162pF @10V(Vds) |
| Input Power (Max) | 460 mW |
| Fall Time | 25 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500mW (Ta) |
| expand all | |
| Size-Length | 2.92 mm |
| Size-Width | 1.4 mm |
| Size-Height | 0.94 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The NDS331N is a N-channel logic level enhancement mode Field Effect Transistor using high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance. Suited for low voltage applications in PCMCIA cards and other battery powered circuits where fast switching and low in-line power loss are needed in a very small outline surface mount package.
