AD8599 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8599
Manufacturer

ADI
ChipWorker Part#

CW353146079
RoHS

Lead free / RoHS Compliant
Description

Ultralow Distortion, Ultralow Noise Op Amp (Dual)
Documentation

Datasheet

AD8599 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8599 Specifications

Attribute	Attribute Value

Part Number	AD8599
Manufacturer	ADI
ChipWorker Part#	CW353146079
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOIC
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Product Description

Product Details
The AD8597/AD8599 are very low noise, low distortion opera-tional amplifiers ideal for use as preamplifiers. The low noise of 1.1 nV/√Hz and low harmonic distortion of −120 dB (or better) at audio bandwidths give the AD8597/AD8599 the wide dynamic range necessary for preamplifiers in audio, medical, and instru-mentation applications. The excellent slew rate of 14 V/μs and 10 MHz gain bandwidth make them highly suitable for medical applications. The low distortion and fast settling time make them ideal for buffering of high resolution data converters.

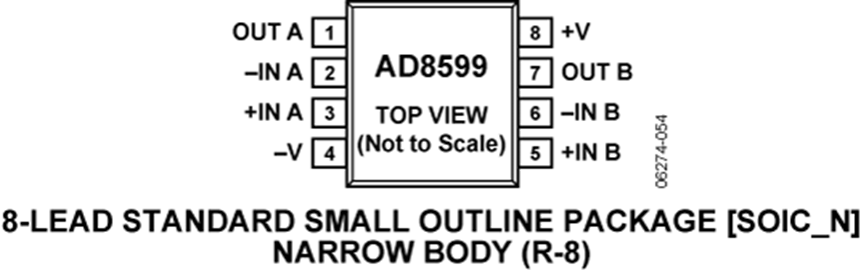

The AD8597 is available in 8-lead SOIC and LFCSP packages, while the AD8599 is available in an 8-lead SOIC package. They are both specified over a −40°C to +125°C temperature range. The AD8597 and AD8599 are members of a growing series of low noise op amps offered by Analog Devices, Inc.
**Applications**
Professional audio preamplifiers
ATE/precision testers
Imaging systems
Medical/physiological measurements
Precision detectors/instruments
Precision data conversion
### Features and Benefits
Low noise: 1.1 nV/√Hz at 1 kHz
Low distortion: −120 dB THD at 1 kHz
Input noise, 0.1 Hz to 10 Hz: <76 nV p-p
Slew rate: 14 V/μs
Wide bandwidth: 10 MHz
Supply current: 4.8 mA/amp typical
Low offset voltage: 10 μV typical
See data sheet for additional features
AD8599-EP supports defense and aerospace applications (AQEC standard)
Download AD8599-EP data sheet (pdf)
Extended temperature range: −55°C to +125°C
Controlled manufacturing baseline
One assembly/test site
One fabrication site Enhanced product change notification
Qualification data available on request
V62/16604 DSCC Drawing Number
