ADG1402BRMZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADG1402BRMZ
Manufacturer

ADI
ChipWorker Part#

CW212779
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

MSOP-8
Description

Interface IC - analogue switches Analog Devices ADG1402BRMZ MSOP 8
Documentation

Datasheet

ADG1402BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADG1402BRMZ Specifications

Attribute	Attribute Value

Part Number	ADG1402BRMZ
Manufacturer	ADI
ChipWorker Part#	CW212779
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Number of Outputs	1 Output
Supply Current	60 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.44 mW
Bandwidth	120 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	120 MHz
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	16.5 V
	expand all
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Product Details

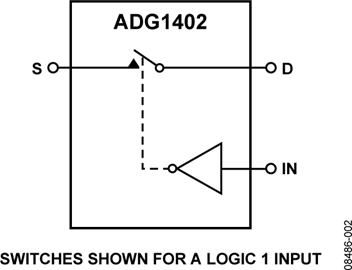

The ADG1401/ADG1402 contain a single-pole/single-throw (SPST) switch. Figure 1 shows that with a logic input of 1, the switch of the ADG1401 is closed and that of the ADG1402 is open. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
The _i_CMOS® (industrial CMOS) modular manufacturing process combines high voltage, complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage parts has achieved. Unlike analog ICs using conventional CMOS processes, _i_CMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and a reduced package size.
The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. The _i_CMOS construction ensures ultralow power dissipation, making the part ideally suited for portable and battery-powered instruments.
**PRODUCT HIGHLIGHTS**
1.3 Ω maximum on resistance at 25°C.
Minimum distortion.
3 V logic-compatible digital inputs: VIH = 2.0 V, VIL = 0.8 V.
No VL logic power supply required.
8-lead MSOP and 8-lead, 3 mm × 2 mm LFCSP packages.
**APPLICATION**
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Audio signal routing
Video signal routing
Communication systems
Relay replacements
### Features and Benefits
1 Ω on resistance
0.2 Ω on resistance flatness
Up to 435 mA continuous current
Fully specified at +12 V, ±15 V,
±5 V
No VL supply required
3 V logic-compatible inputs
Rail-to-rail operation
8-lead MSOP and 8-lead,
3 mm × 2 mm LFCSP packages
