ADN2880 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

27 points

Part No

ADN2880
Manufacturer

ADI
ChipWorker Part#

CW389470933
Description

3.2Gbps 3.3V Low Noise TIA for Small Form Factors
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy ADN2880

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADN2880 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADN2880 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADN2880
Manufacturer	ADI
ChipWorker Part#	CW389470933
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

Product Details

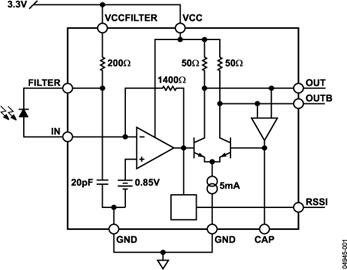

The ADN2880 is a 3.3 V, high gain SiGe transimpedance amplifier (TIA). The TIA converts the small signal current of a photo detector into differential voltage output. The ADN2880 features a 315 nA typical input-referred noise, enabling an optical sensitivity of −24.2 dBm (0.85 A/W PIN). With a bandwidth of 2.5 GHz, the ADN2880 allows a data rate operation up to 3.2 Gbps. Typical power dissipation is approximately 70 mW.
To facilitate the assembly in small form factor packages, such as TO-46 headers, the ADN2880 provides an on-chip RC filter (200 Ω, 20 pF) and features a 20 kHz low frequency cutoff without using an external capacitor. An on-chip RSSI circuit, which generates a voltage proportional to the average photo-diode current, is also available for power monitoring and assembly alignment.
The ADN2880 is available in die form. With a chip area of 1.2 mm × 0.7 mm, the TIA layout is specifically optimized for TO-Can-based packages.
**Applications**
3.2 Gbps or below optical receivers
SONET/GbE/FC optical receivers
SFF-8472-compliant receivers
PIN/APD-TIA receive optical subassemblies (ROSA)
### Features and Benefits
Bandwidth: 2.5 GHz
Optical sensitivity: −24.2 dBm
Differential transimpedance: 4400 V/A
Power dissipation: 70 mW
Differential output swing: 260 mV p-p
Input overload current: 4.3 mA p-p
On-chip RSSI function
Low frequency cutoff: 20 kHz
On-chip PD filter: RF = 200 Ω, CF= 20 pF
Die size: 0.7 mm x 1.2 mm
