Part No

ADN4662
Manufacturer

ADI
ChipWorker Part#

CW760467463
Description

Single, 3V, CMOS, LVDS Differential Line Receiver
Documentation

Datasheet

ADN4662 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADN4662 Specifications

Attribute	Attribute Value

Part Number	ADN4662
Manufacturer	ADI
ChipWorker Part#	CW760467463
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Product Description

Product Details

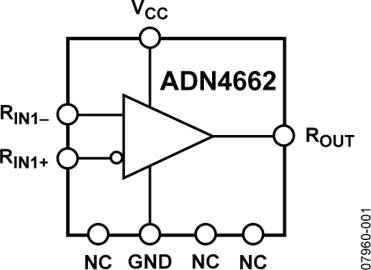

The ADN4662 is a single, CMOS, low voltage differential signaling (LVDS) line receiver offering data rates of over 400 Mbps (200 MHz), and ultralow power consumption. It features a flow-through pinout for easy PCB layout and separation of input and output signals.
The device accepts low voltage (310 mV typical) differential input signals and converts them to a single-ended 3 V TTL/ CMOS logic level. The ADN4662 and its companion driver, the ADN4661, offer a new solution to high speed, point-to-point data transmission, and a low power alternative to emitter-coupled logic (ECL) or positive emitter-coupled logic (PECL).
**Applications**
* Point-to-point data transmission
* Multidrop buses
* Clock distribution networks
* Backplane receivers
### Features and Benefits
±15 kV ESD protection on input pins
400 Mbps (200 MHz) switching rates
Flow-through pinout simplifies PCB layout
2.5 ns maximum propagation delay
3.3 V power supply
High impedance outputs on power-down
|
Interoperable with existing 5 V LVDS drivers
Accepts small swing (310 mV typical) differential signal levels
Supports open, short, and terminated input fail-safe
0 V to −100 mV threshold region
Conforms to TIA/EIA-644 LVDS standard
Industrial operating temperature range: −40°C to +85°C
---|---
