ADT7421ARMZ-2RL7 ,Temperature Sensor - ON Semiconductor

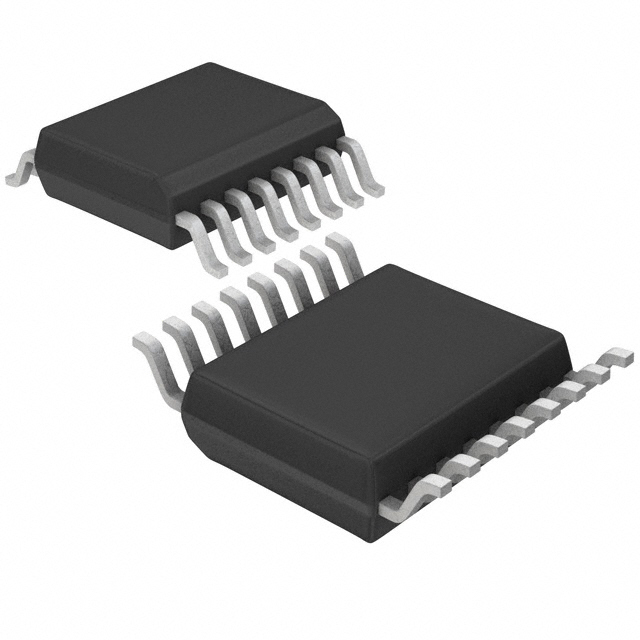

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

59 points

Part No

ADT7421ARMZ-2RL7
Manufacturer

ON Semiconductor
ChipWorker Part#

CW128548709
Category

Temperature Sensor
Package

TSSOP-8
Description

Temp Sensor Digital Serial (2-Wire) 8Pin MSOP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

3092 pcs In Stock
Estimated Price

Price on Request

Buy ADT7421ARMZ-2RL7

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADT7421ARMZ-2RL7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADT7421ARMZ-2RL7 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADT7421ARMZ-2RL7
Manufacturer	ON Semiconductor
ChipWorker Part#	CW128548709
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Current	4 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
	expand all
Operating Temperature	-40℃ ~ 120℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

Precision Temperature Sensor with Beta Compensation (for <45 nm Geometries)
The ADT7421 is a dual−channel digital thermometer and under/overtemperature alarm, intended for use in PCs and thermal
management systems. It is pin−and register−compatible with the ADM1032, ADT7461 and ADT7461A. The ADT7421 includes Beta Cancellation Technology. This enables accurate measurement of temperature from very small geometry
(45 nm) processes. Significant variations in the Beta factor can be observed when different currents are applied to transistors embedded in small geometry CPU’s. This leads to large temperature errors. The ADT7421 automatically cancels the effects of error induced by beta variations.
Features
•On−Chip and Remote Temperature Sensor
•0.25°C Resolution on Remote Channel
•1°C Resolution on Local Channel
•Automatically Cancels the Effect of Beta Variation in Thermal Transistors on Small Geometry CPU’s
•Automatically Cancels Up to 50 (Typical) of Resistance in Series with Remote Transistor
•Extended, Switchable Temperature Measurement Range 0°C to +125°C (default) or −40°C to +125°C
•Pin−and Register−Compatible with ADM1032, ADT7461, ADT7461A, EMC1402, and aSC7525
•2−Wire SMBus Serial Interface with SMBus Alert Support
•Programmable Over/Undertemperature Limits
•Offset Registers for System Calibration
•Up to Two Overtemperature Fail−Safe THERMOutputs
•Small 8−lead MSOP and SOP Packages
•These are Pb−Free Devices
Applications
•Desktop and Notebook Computers
•Industrial Controllers
•Smart Batteries
•Automotive
