ADV7280BCPZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADV7280BCPZ
Manufacturer

ADI
ChipWorker Part#

CW504200
Category

Interface IC, Interface Controller
Package

LFCSP-32
Description

Video Decoder 1ADC 10Bit Automotive 32Pin LFCSP EP Tray
Documentation

Datasheet

ADV7280BCPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADV7280BCPZ Specifications

Attribute	Attribute Value

Part Number	ADV7280BCPZ
Manufacturer	ADI
ChipWorker Part#	CW504200
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Number of Positions	32 Position
Power Dissipation	1 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1 mW
Number of Input Channels	4 Channel
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	expand all
Size-Length	5.1 mm
Size-Width	5.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Product Details

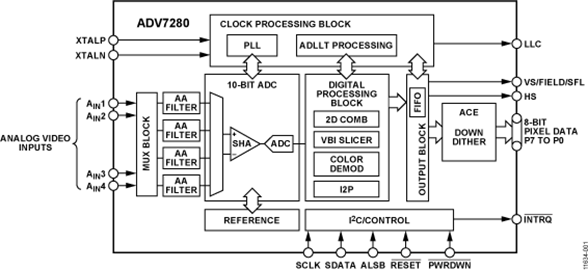

The ADV7280/ADV7280-M are versatile one-chip, multiformat video decoders. The ADV7280/ADV7280-M automatically detect standard analog baseband video signals compatible with worldwide NTSC, PAL, and SECAM standards in the form of composite, S-Video, and component video.
The ADV7280 converts the analog video signals into a 4:2:2 component video data stream that is compatible with the 8-bit ITU-R BT.656 interface standard. The ADV7280-M converts the analog video signals into a mobile industry processor interface (MIPI®) CSI-2 (8-bit YUV) output video stream.
The analog video inputs of the ADV7280/ADV7280-M accept single-ended signals. The ADV7280 provides four analog inputs; the ADV7280-M provides eight analog inputs. The ADV7280 and ADV7280-M support I2P conversion.
The ADV7280/ADV7280-M are programmed via a 2-wire, serial bidirectional port (I2C compatible) and are fabricated in a 1.8 V CMOS process. The LFCSP package option makes these decoders ideal for space-constrained portable applications.
**Applications**
Smartphone/multimedia handsets
Automotive infotainment
DVRs for video security
Media players
### Features and Benefits
Worldwide NTSC/PAL/SECAM color demodulation support
One 10-bit analog-to-digital converter (ADC), 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
Analog video input channels with on-chip antialiasing filter
ADV7280: up to 4 input channels
ADV7280-M: up to 8 input channels
Video input support for CVBS (composite), Y/C (S-Video), and YPrPb (component)
NTSC/PAL/SECAM autodetection
Up to 1.47 V common-mode input range solution
Excellent common-mode noise rejection capabilities
5-line adaptive 2D comb filter and CTI/DNR video enhancement
Adaptive Digital Line Length Tracking (ADLLT), signal processing, and enhanced FIFO management provide mini-time base correction (TBC) functionality
See data sheet for additional features
